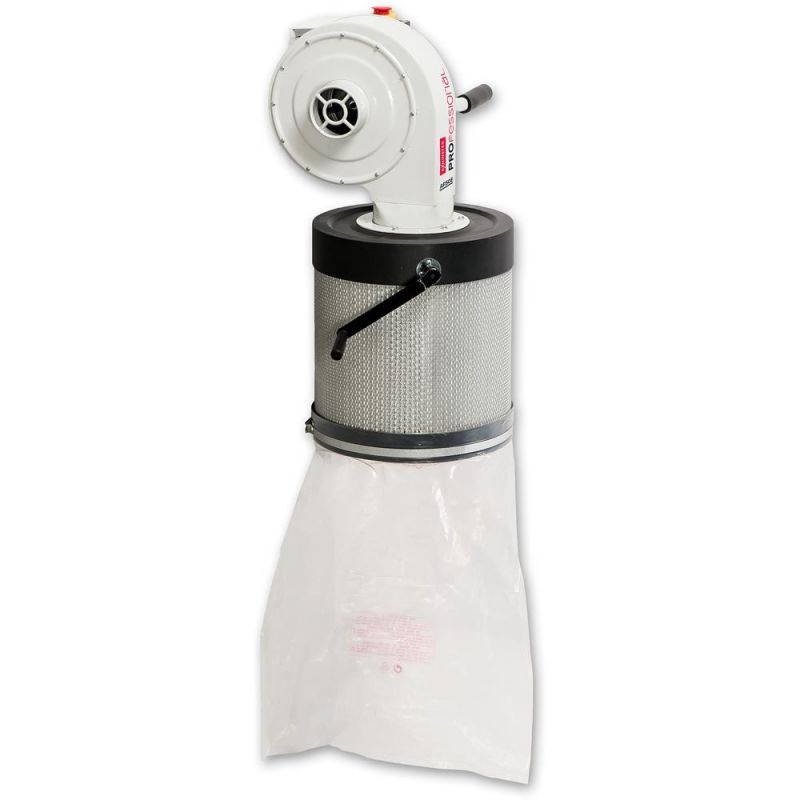

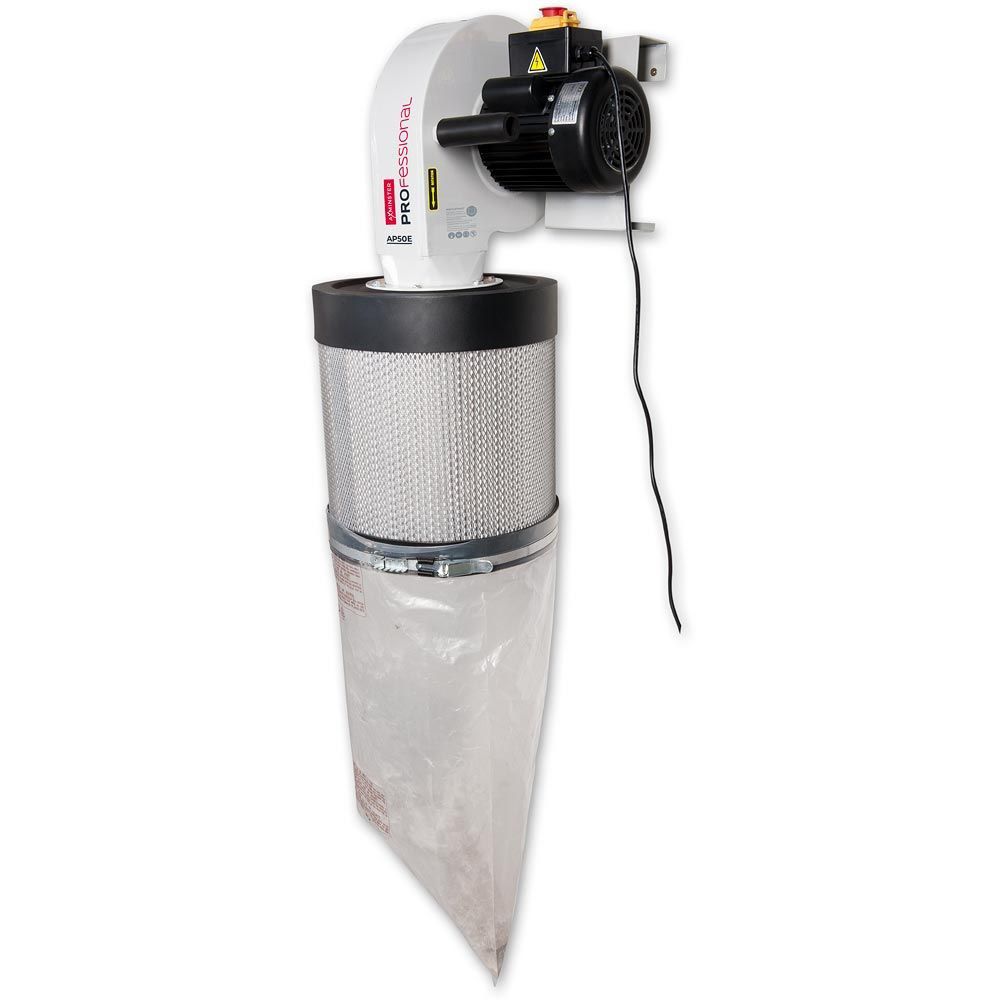

Axminster Professional AP50E Wall Mounted Dust Extractor 1HP 230V

Axminster Professional AP50E Wall Mounted Dust Extractor 1HP 230V

ref: 107631

If you are tight on space, this wall mounted extractor is just what you need. Ideal for smaller workshops, the Axminster Professional AP50E 1HP Extractor saves much needed floor space while safeguarding your health at the same time.

• This wall mounted extractor is perfectly suited to small workshops, woodturners or for connection to a stand-alone machine. It is especially suited to situations where floor space is at a premium. Well constructed and efficient, its 1hp motor generates 920m³/hr of airflow and is fitted with a 1 micron rated cartridge filter. This is able to handle chippings and both coarse and medium fine dusts.
• The collection bag is clipped to the bottom of the filter; if you wish to fit a larger bag, please support it underneath on the floor or the weight of a full bag of waste may be enough to pull it off the filter. The filter has a crank handle operating a paddle to keep the interior clean, use this periodically to maintain filter efficiency.
• Please make sure your wall is capable of supporting the extractor's weight.

• Airflow: 920 m³/hr @ 100mm
• Bag Capacity: 50 litre
• Filter Performance: 100% >1 micron
• Hose Diameter: 100 mm
• Model: AP50E
• Nett Weight: 27 kg
• Overall L x W x H: 580 mm x 440 mm x 820 mm (without bag)
• Plug Fitted: UK 3 pin plug
• Power: 750 W
• Rating: Trade/Professional
• Sound Pressure Level LpA [Uncertainty K]: 82 dB(A) [1.5 dB]
• Static Pressure: 1,600 Pa
• Voltage: 230 V
