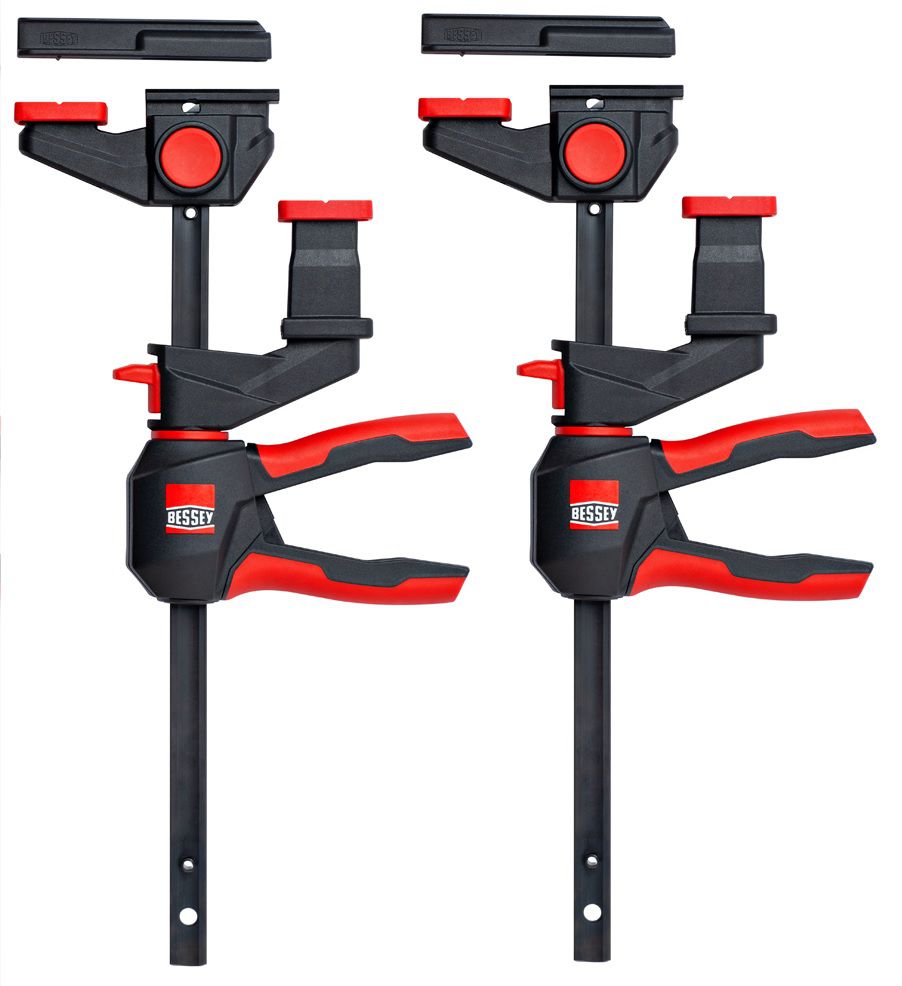

Bessey EZR360-15SET 2 x One-Handed Table Clamp with Rotating Handle for Guide Rails EZR360

Bessey EZR360-15SET

2 x One-Handed Table Clamp with Rotating Handle for Guide Rails EZR360

• For fixing guide rails from Festool, Shaper, Hilti, Milwaukee, Makita, Metabo, Hikoki, Einhell, DeWalt, etc. (groove dimensions 12 x 6.5 mm to 12 x 8 mm)
• Also suitable for Bosch, Flex, Mafell (groove dimensions 12 × 1.8 mm) thanks to included and slide-on adapter
• For clamping in profiles and on work tables

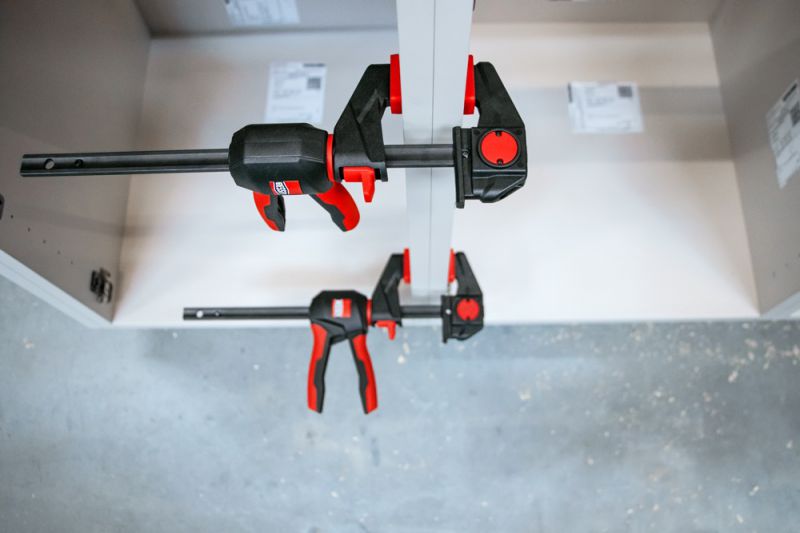

• Can be used as a normal one-handed clamp for clamping – also overlapping – and spreading

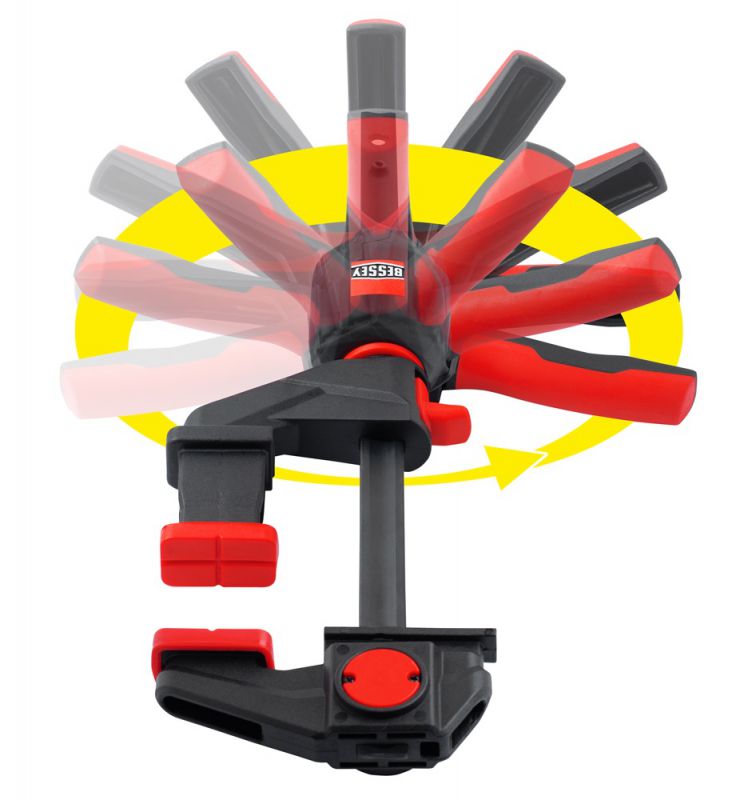

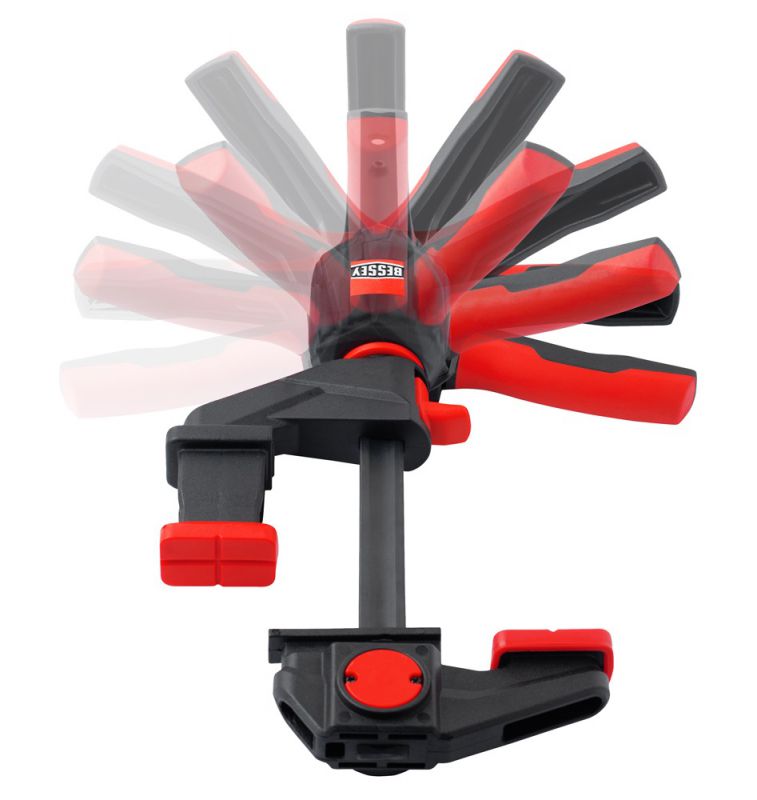

• Innovative 360° rotating mechanism allows the handle unit to be placed around the rail – already before but also after fastening the clamp
• 2-step latching mechanism to securely hold the selected handle position
• Clamping force up to 750 N / 75 kg / 165 lbs

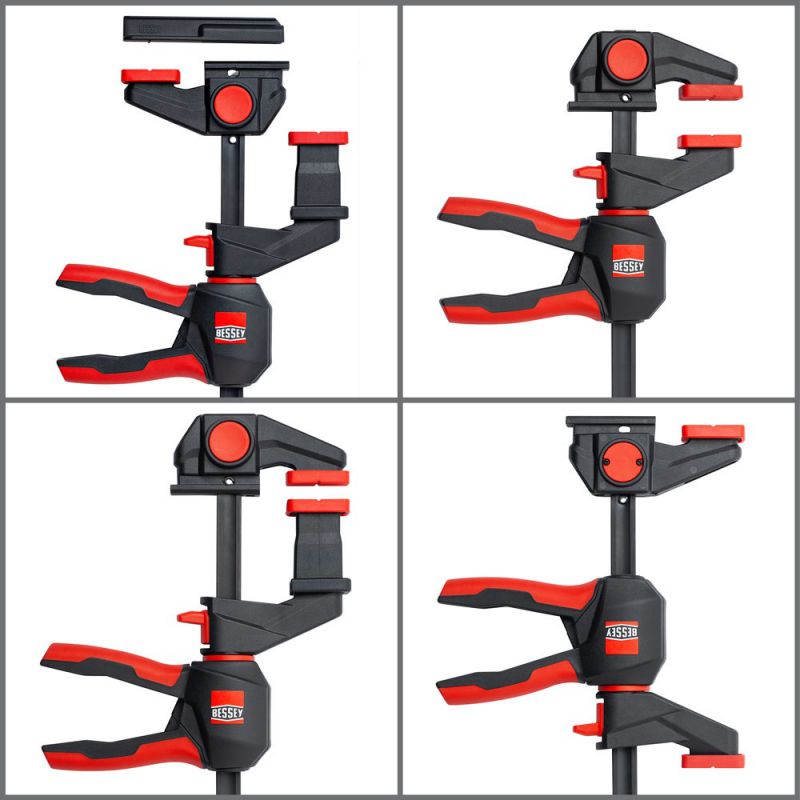

Versatile use

This clamp offers a wide range of applications - as a table clamp and as a one-handed clamp:

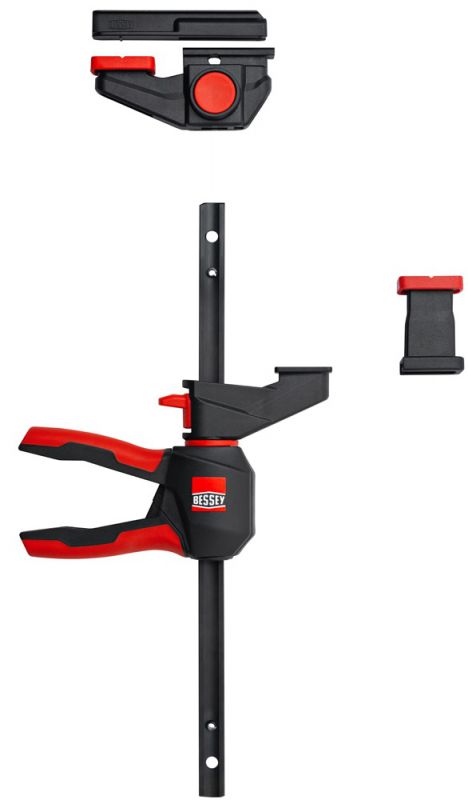

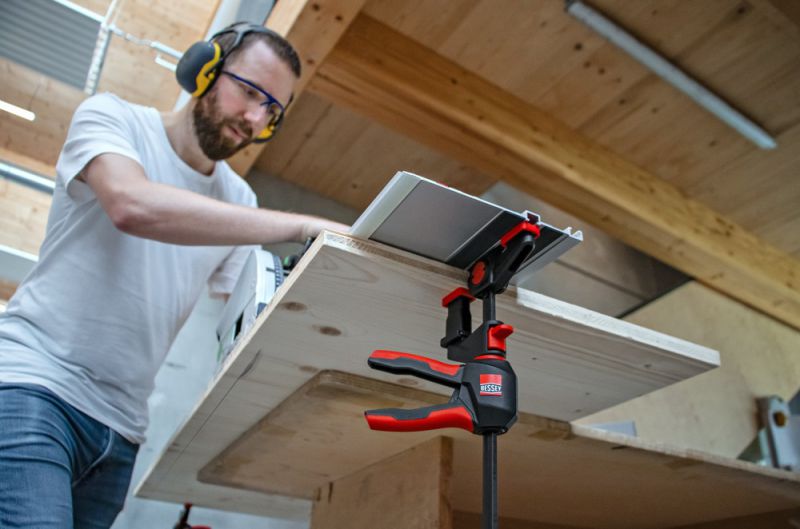

• with attachment on lower part and inverted upper section for secure fixing of guide rails from Festool, Shaper, Hilti, Milwaukee, Makita, Metabo, Hikoki, Einhell, DeWalt, etc. and for clamping in profiles and on workbenches

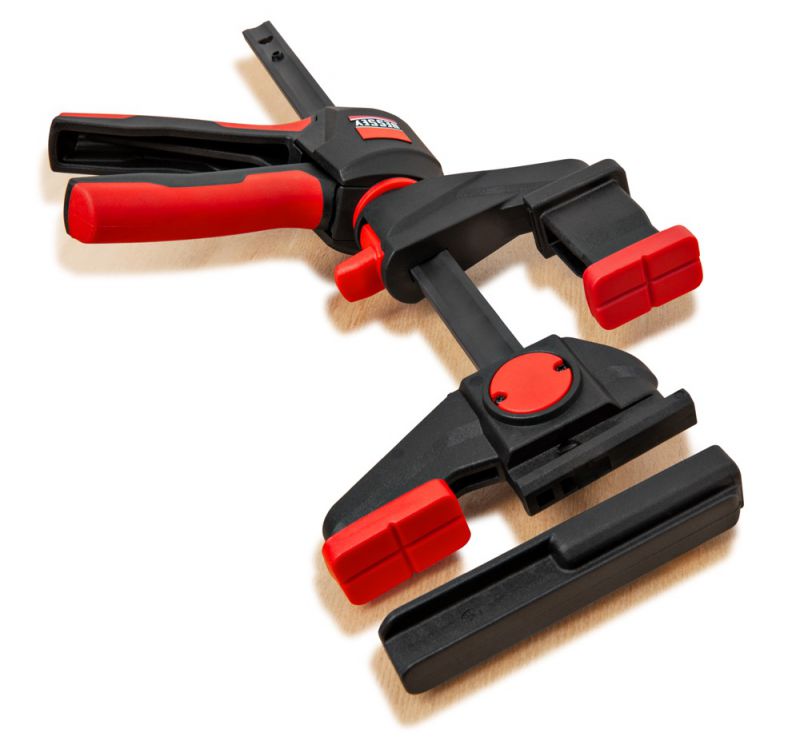

• with additional adapter on the upper section, also suitable for fixing guide rails from Bosch, Flex and Mafell
• With attachment on upper or lower part for overlapping clamping

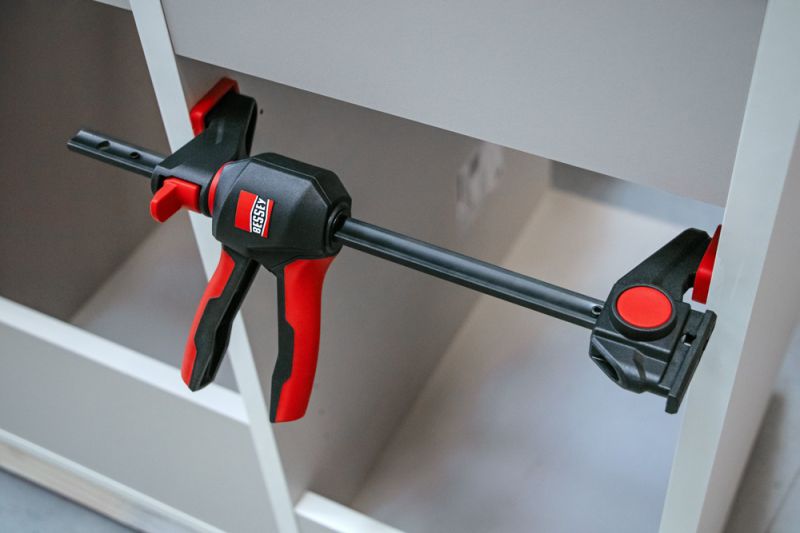

• Suitable for tensioning or spreading

Extremely convenient handling

On the one hand, the handle can be positioned in such a way that an optimum pumping position and therefore better application of force is achieved. Secondly, the handle can also be swiveled out of the working area after the clamping process, allowing several clamps to be positioned in the tightest of spaces when used as a one-handed clamp:

• thanks to the high-quality 2-component plastic handle with pump lever, which can be completely rotated around the rail and securely locked in 12 positions
• the release lever on the sliding arm for quick adjustment of the clamping width and release of the clamp
• The cross prism integrated in the plastic protective caps for securely fixing round, pointed and angular parts

Robust design

This is where modern looks meet durability:

• through the use of high-quality materials such as glass fiber-reinforced polyamide for the upper and lower parts and tempered and burnished steel for the hollow profile rail
• The plastic housing protects the handle mechanism from dust and chips

• Opening mm: 150
• Throat depth mm: 60
• Spreading width mm: 150-335
• Rail mm: 14 x 5
