Charnwood Package Deal - W590 Planer Thicknesser & Dust Extractor - Save £600!

Charnwood Package Deal

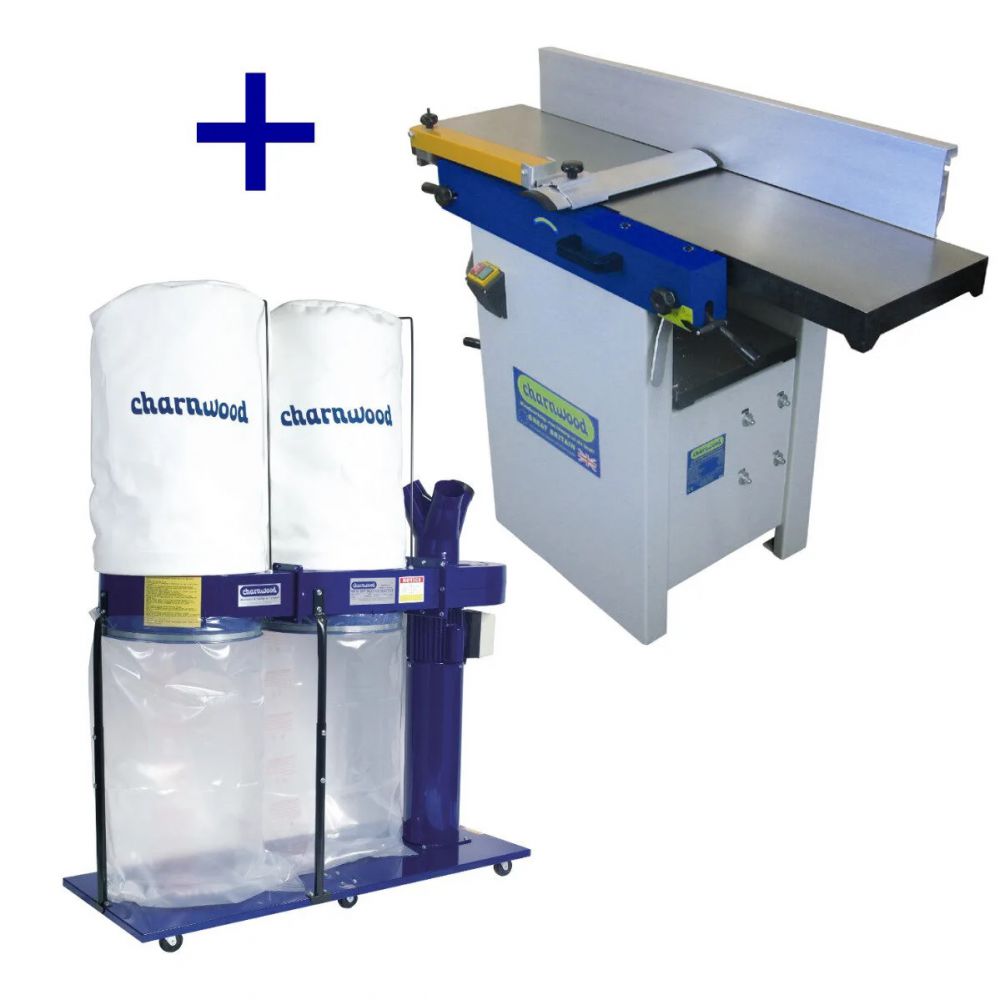

W590 Planer Thicknesser & W792 Dust Extractor

Package Consists of:

• W590 Planer Thicknesser 12″ x 9″
• W792 2200w Dust Extractor

Save £600

Price available until the end of September or whilst stocks last

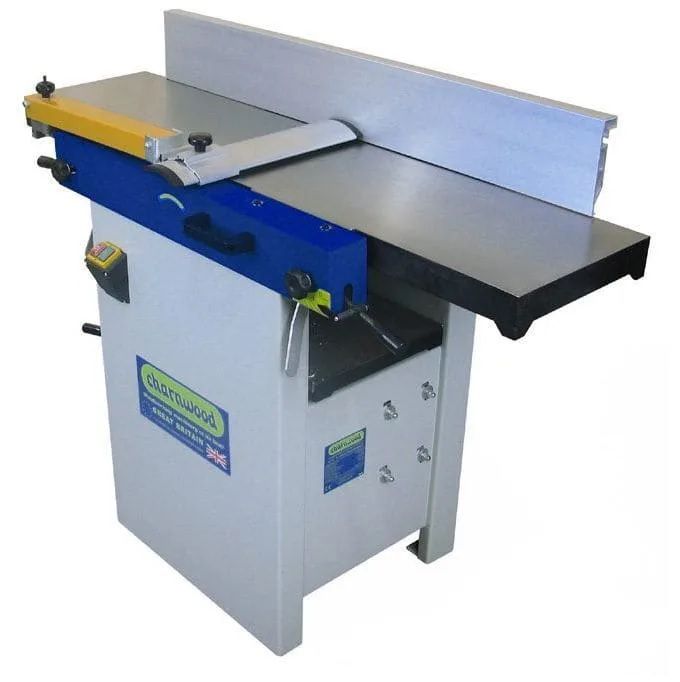

W590 Planer Thicknesser:

• Long precision ground cast iron beds help to ensure accurate planing up to 12′ wide. The Aluminium fence is over 1 metre in length, can be tilted to 45 degrees and can be moved across the cutterblock to extend the life of the blades when working with narrower timber. A lever located at the end of the infeed bed adjusts the planing depth between zero and 3mm reading from the large scale.
• The outstanding feature of this machine is that both planing tables are hinged and lift together as one. In addition to that, the planing fence can be left in place so that changing function from planing to thicknessing is quick and easy. Once the table had been raised, it locks into position and the cutter guard swings into place. The whole operation takes only seconds.
• A large handwheel adjusts the thicknessing bed height with a scale marked out in mm and a lock to ensure accuracy when machining a batch of components. In addition we include a micro adjuster to set the thicknesser height to an accuracy of 0.1mm.
• The drive mechanism for the thicknesser can be disengaged during planing operations to save wear & tear on those moving parts.
• Supplied with 100mm dust extraction outlet, 4 adjustable feet, Integral 16amp industrial plug socket (round blue type).
• Requires a 16amp electric supply.
• It is essential to use dust extraction with a planer thicknesser. The extractor removes all the dust and chips which will otherwise build up, causing a blockage and eventually damage to the machine. Using an extractor also increases the life of the knives.

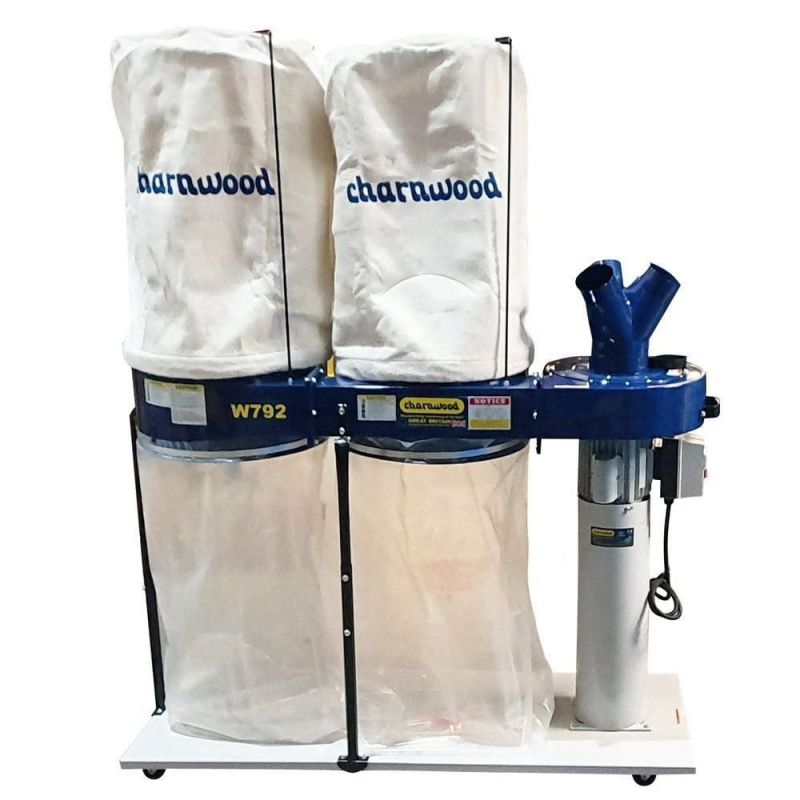

W792 Professional Dust Extractor 2200w 240v:

• Powered by a 3hp Induction motor rated for continuous running, up to 8 hours per day. A rigid frame supports the fan unit and lifts the inlet port to a height of 110cm, which can give increased efficiency when a hose branch goes overhead or stays up at bench height.
• These collectors are suitable for locations where the extractor will be cited a little distant from the dust source. The higher flowrate also allows a small system of hose branch lines to be fitted around the workshop to allow extraction from a variety of machines and even up to 3 at the same time.
• The motor drives a riveted steel fan which creates the airflow, depositing all dust, chips and shavings into the collection bags. The two collection bags fill equally and are generally emptied at the same time.
• When it comes to emptying the collection bag, a quick release metal strap frees the bag, ready for replacement. Spring clamps hold the new collection bag in position whilst the metal strap is being refitted. Anyone who has changed a bag without that feature will certainly appreciate it. A foam strip around the rim of the collector body ensures a good seal once the strap is clamped shut.
• We fit as standard a super fine 2 micron cloth filter making the unit suitable even for MDF dust.
• Maximum recommended total hose length per run is 10 metres @100mm diameter.
• Supplied with transparent collection bag, durable steel fan, NVR switch, 4 castors, quick release metal straps, 3 way splitter and 1.6m power cable (No plug).
• A 16 amp, 240v electric supply is required to run this machine. We also recommend using a 16amp Type C breaker.
• Hose is not supplied as standard, our 100mm diameter transparent hose is recommended, sold by the metre.

• Surfacing width: 305mm (12″)
• Length of surfacing tables: 1290mm
• Maximum depth of cut: 3mm
• Fence tilt 90 – 45: 90 – 45 degrees
• Table height: 850mm
• Thicknessing capacity: 5-230mm (1/4″-9″)
• Length of thicknessing table: 545mm
• Feed speed: 7m/min
• Maximum depth of cut: 4.5mm
• Cutterblock speed: 5500rpm
• Number of knives: 3
• Motor ( induction): 3000w (4hp), 240v
• Assembled Dimensions (WxDxH): 1290mm x 760mm x 1020mm
• Assembly Time Required: 30 Minutes (Needs 2 People)
• Shipping Dimensions (WxDxH): 1320 x 970 x 570mm
• Minimum Door Access Width: 580mm
• Weight: 210kg
• Rating: Trade
• Product Guarantee: 5 Years
