Charnwood Package Deal W824PD - Midi Lathe, VIPER2 Scroll Chuck & Chisel Set

Charnwood Package Deal W824PD

W824 Midi Lathe, VIPER2 Scroll Chuck & TCSET3S Chisel Set

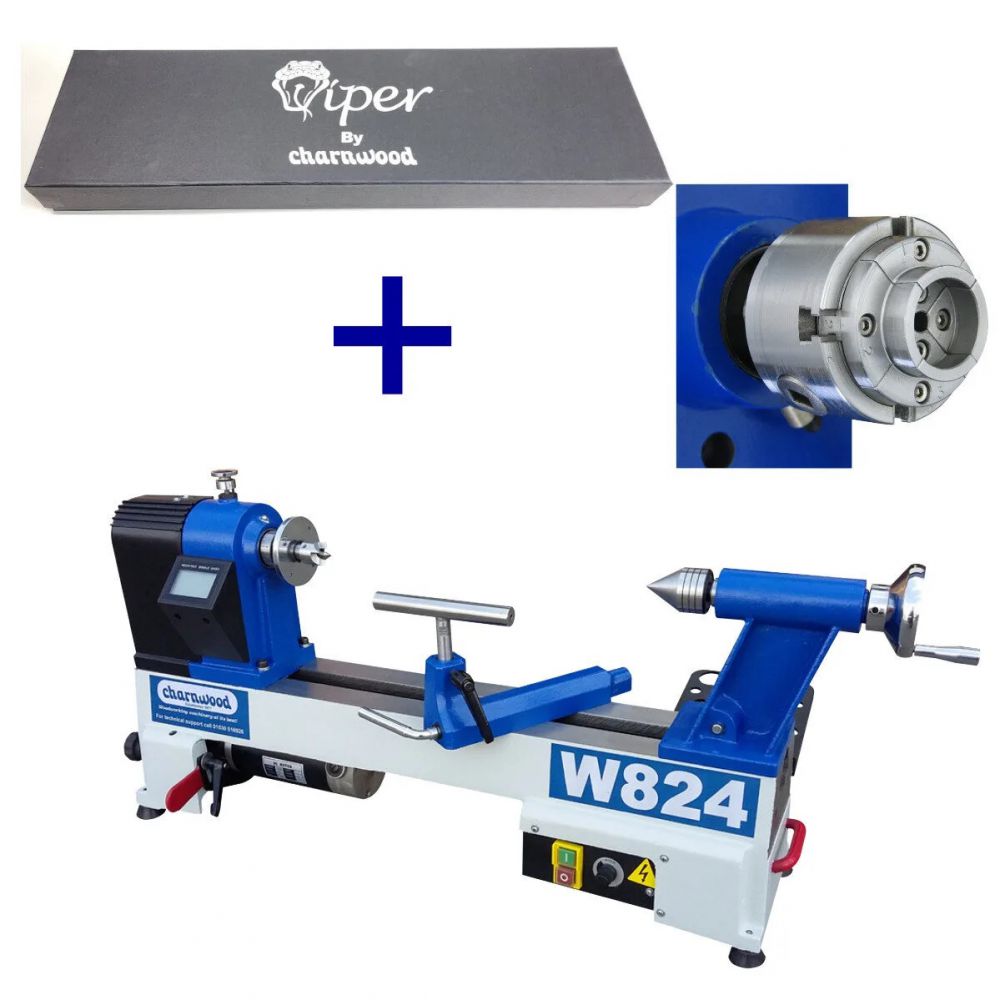

Package consists of:

• W824 Midi Lathe
• Viper2 Scroll Chuck
• TCSET3S 3 Piece Carbide Tipped Woodturning Set

Price available until end of September 2025 or whilst stocks last

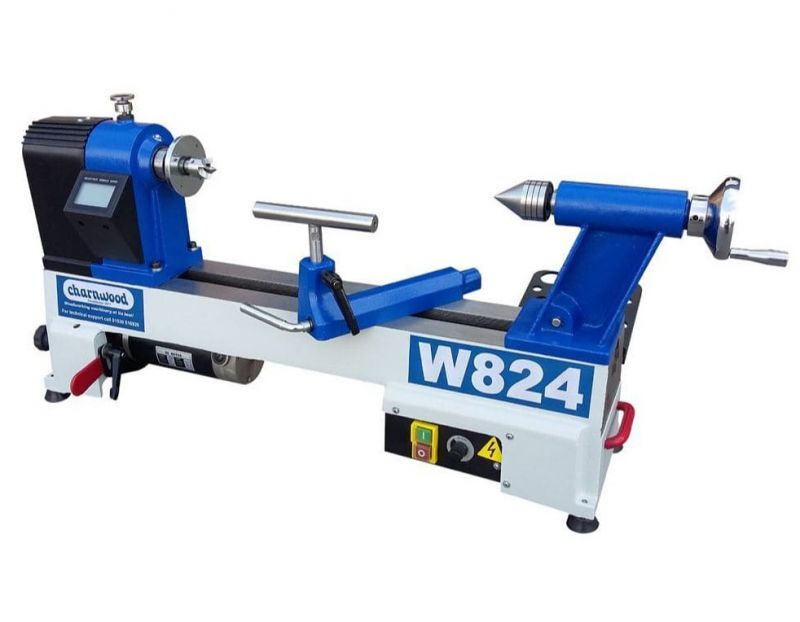

W824 Midi Lathe:

• The midi sized lathe continues to be the best seller. It is a size which can accomplish most of the projects turners are likely to try and is the largest lathe which can comfortably be moved off the bench when not in use.
• The bed of the lathe is one-piece precision ground cast iron giving 14″ between centres when working with our heavy duty centres, which are supplied as standard.
• Setting the correct spindle speed is quickly achieved with the turn of a dial and referring to the backlit digital read out.  When starting off with a large unbalanced bowl it is important to slow the speed down and the W824 has a low speed of 500rpm.
• The tool rest banjo is a cam-lock design for rapid adjustments. The tool rest itself is our ever popular round bar made from hardened steel.
• The headstock spindle is hollow to allow centres to be easily knocked out. The tailstock quill is also hollow to allow long hole boring and has automatic centre removal when winding the quill back to the zero position.
• To allow for creative decorations to be applied or piercings to be made, the headstock spindle has a 24 position indexing system, which allows the spindle to be locked in 15 degree intervals around a rotation.
• Supplied with drive and tail centres 2MT, knockout bar, 6″ toolrest with 5/8″ shank, 3″ diameter faceplate, onboard tool holder, carrying handles, cable tidy, 1.9m power cable and 3 pin UK plug.

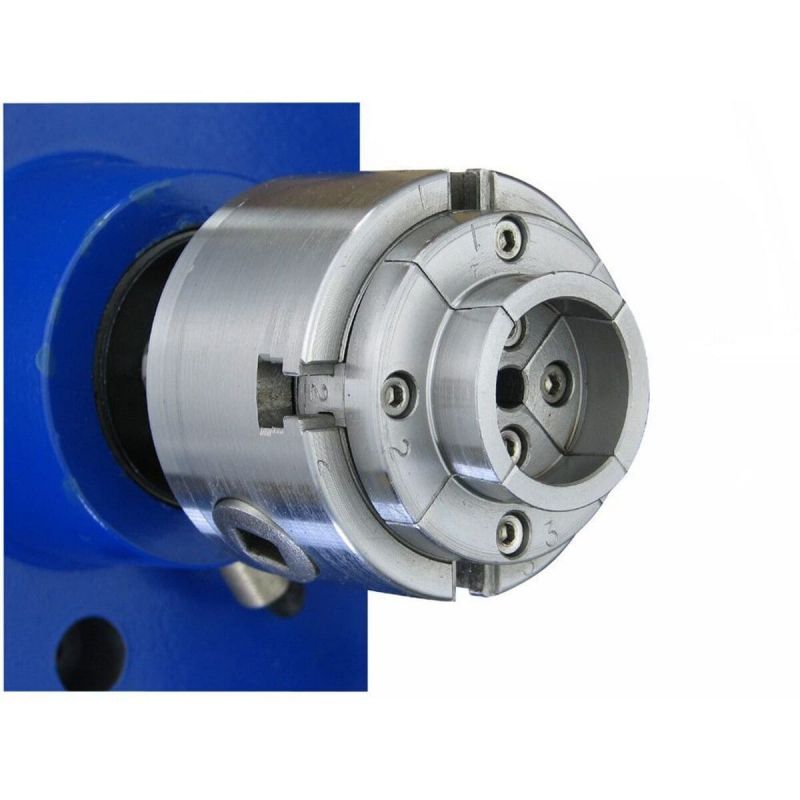

Viper2 Scroll Chuck:

• A compact scroll chuck, with the jaws adjusted by a geared mechanism for simple one handed operation. Self centring, high precision design. Ideal for Mini and Midi sized lathes.
• The standard dovetail jaws can grip the work piece both internally or externally depending on the style and shape of the piece to be turned.
• The chuck fits directly onto the W824 lathe.
• We also include a wood screw which clamps into the centre of the chuck for the initial mounting of bowl blanks.
• Supplied with dovetail jaws, wood screw, T-bar for locking the jaws, T-handled hex key for swapping the jaws.
• We have an extensive range of optional jaws and accessories available for the Viper2 scroll chuck.

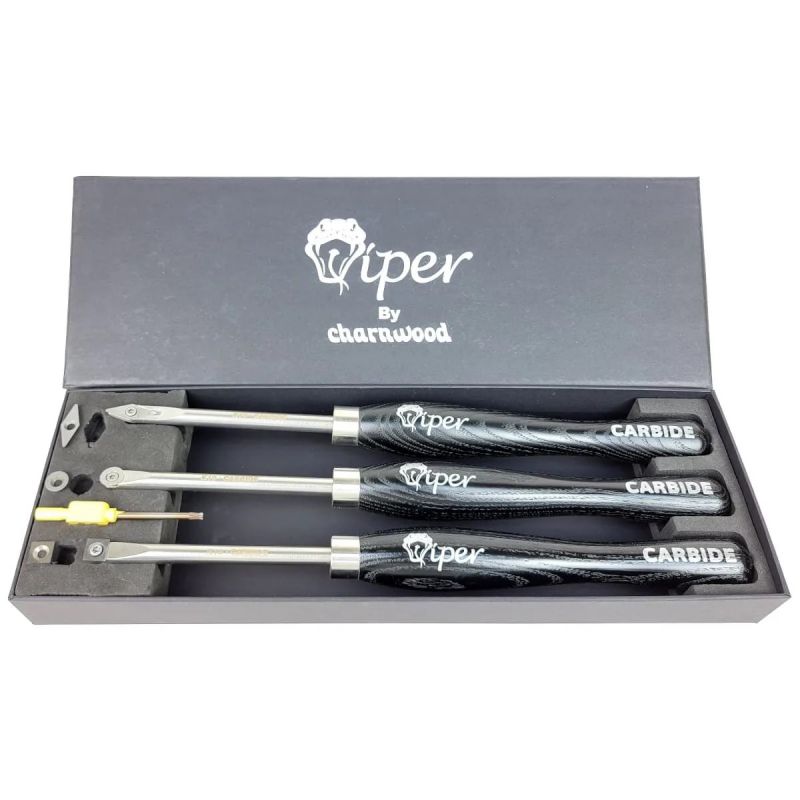

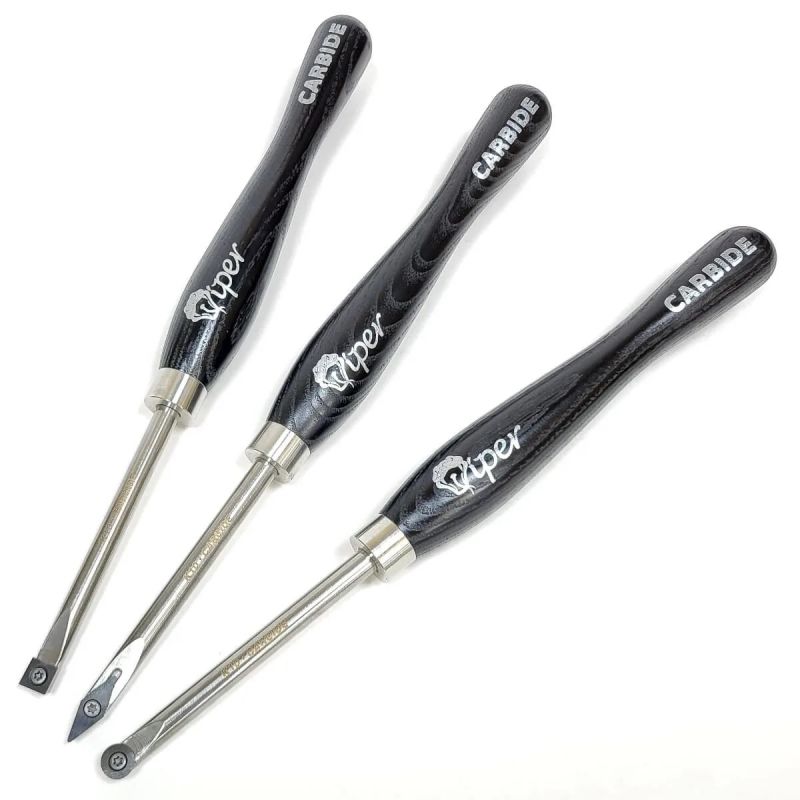

TCSET3S 3 Piece Carbide Tipped Woodturning Set:

• A set of 3 carbide scraper turning tools, incorporating the newest technology in woodturning: Replaceable carbide cutting tips.
• 3 Piece set includes: 12mm Diameter Round Carbide Cutter – For Spindle Cove and Bowl Interior. 11mm x11mm Square Carbide Cutter – For Flat Straight Edges, Spindle Bead & Bowl Exterior. 18mm x 10mm Triangle Carbide Cutter – For Details & Decorative Work
• The handles are 220mm long and made from Ash. A distinctive stainless steel ferrule connects a square shaft which is chrome finished and laser etched. On the end is mounted a Tungsten Carbide (TC) cutting tip. The 3 razor sharp cutting tips have different shapes to achieve different types of cut. Carbide cutters are presented to the timber at 90 degrees and cut with a scraping action. This is a much simpler skill to learn when compared to using a traditional bowl gouge, which is what makes it especially suitable for beginners.
• Carbide cutting tips will last up to 50 times longer than High Speed Steel (HSS). K10 carbide has an extremely high hardness of 92HRC. This completely removes the need to re-sharpen the cutter.  When the cutting edge eventually dulls, each tip can simply be rotated so a new cutting face is used. The Round and Square cutters can be rotated 4 times, the triangle cutter can be rotated twice. After all faces have been used, replace the cutting tip with a new one.
• The steel shaft is square, to sit comfortably on the the tool rest. It is 10mm x 10mm with enough strength to eliminate vibration from the cutting tip.
• This set is suitable for all kinds of spindle and bowl turning. Can be used with softwoods and hardwoods.
• Supplied in a foam lined storage box which will keep your tools safe over a long lifetime. Tool for rotating the cutter is included.

• Max. spindle length (without centres): 465mm (18.6")
• Max. spindle length (with centres fitted): 360mm (14")
• Swing over bed (max. bowl diameter): 300mm (12")
• Swing over banjo (max. bowl diameter): 240mm (9.6")
• Motor DC (carbon brush): 550w (3/4hp), 240v
• Indexing Positions: 24 (every 15 degrees)
• Speed range: 500 - 3800rpm
• Spindle thread size: 1" x 8tpi
• Head and tailstock tapers: 2MT
• Tailstock Through Bore: 9.5mm (3/8”)
• Tailstock Quill Travel (Auto centre removal): 45mm
• Bench Top to Spindle Centre: 350mm
• Tool Post Diameter: 5/8"
• Dimensions (WxDxH): 980mm x 310mm x 440mm
• Weight: 32kg
• Assembly Time Required: 10 Minutes
• Product Rating: Hobby
• Product Guarantee: 5 Years
