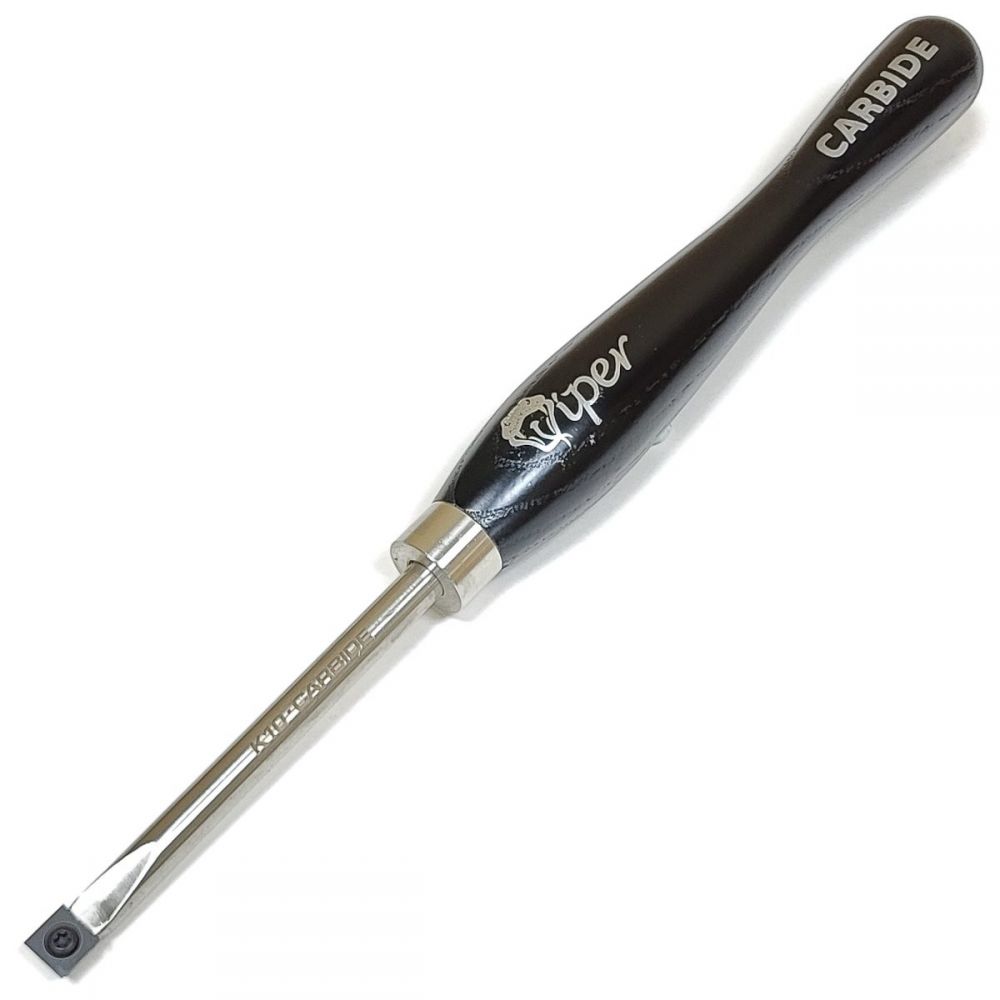

Charnwood Viper M2041T Carbide Tipped Scraper Tool - 11mm Square - Short Version

Charnwood Viper M2041T

Carbide Tipped Scraper Tool - 11mm Square - Short Version

• Short version of M2045T, used for small-scale projects, delicate detailing, and working on smaller lathes, where large tools lack maneuverability.

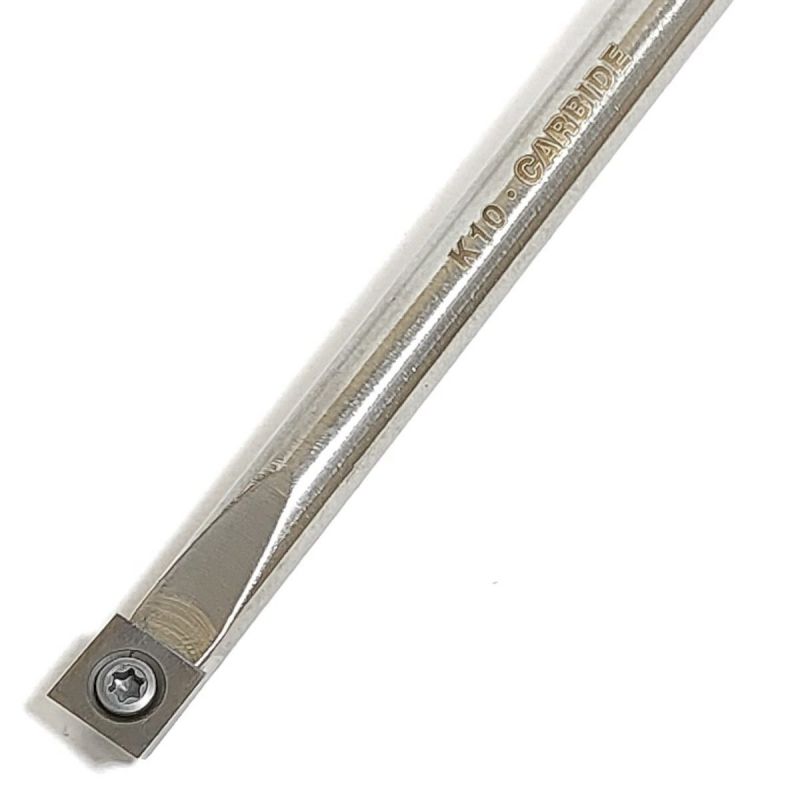

• Carbide Tipped Scraper Tool
• Tip Shape: 11mm Square
• Square Carbide Cutter For Flat Straight Edges

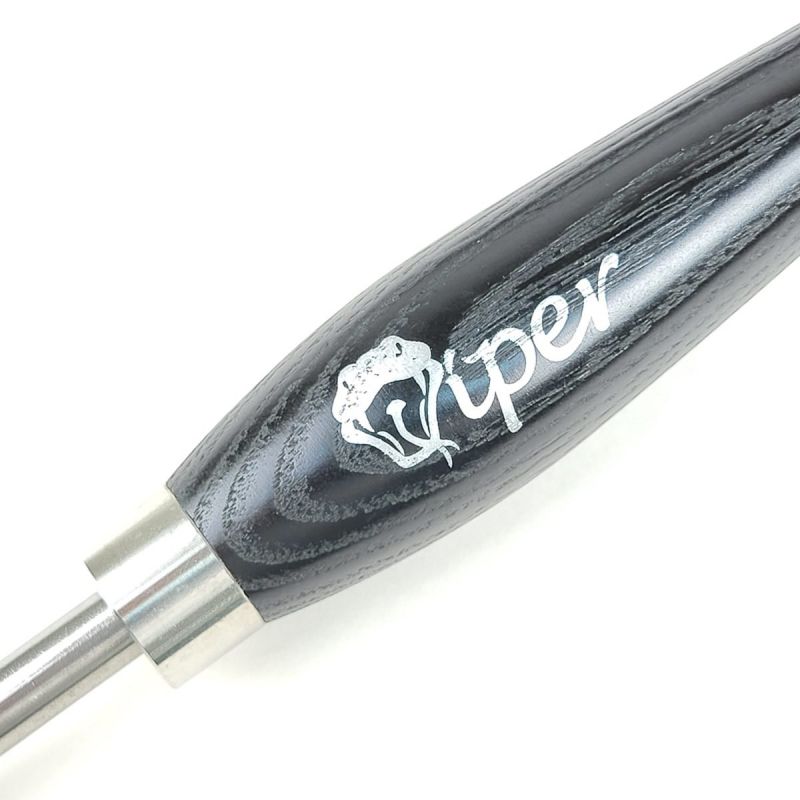

• Contoured Handles Made From Ash

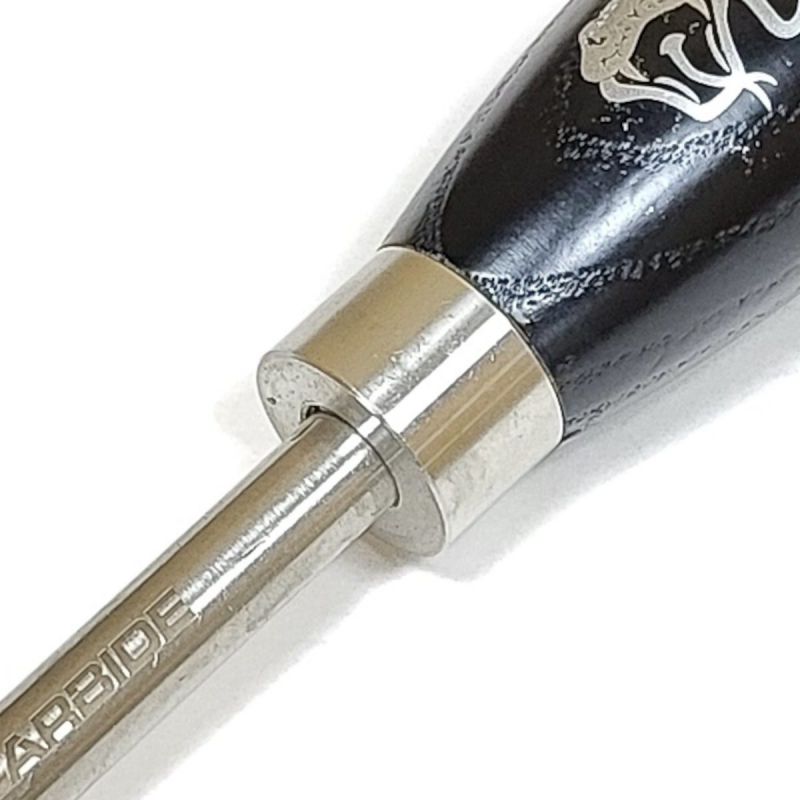

• Distinctive Stainless Steel Ferrules
• Handle Length 220mm
• Shaft Length 120mm

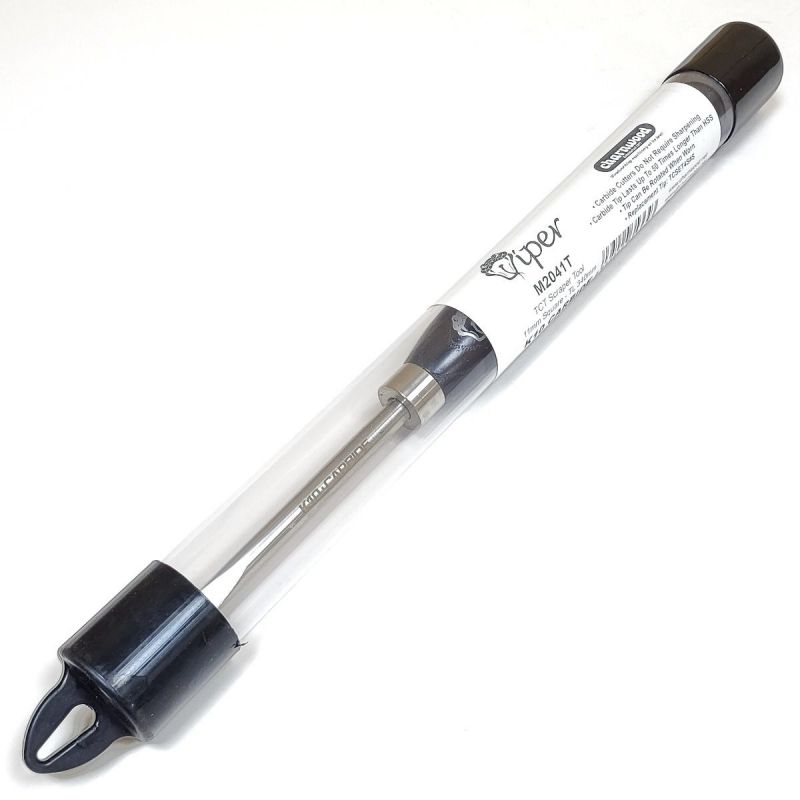

• Supplied In A Transparent Hanging Storage Tube
• Replaceable Tip
• Also sold as part of our 3 piece set TCSET3S

Intended Use

• A scraper is used for refining shapes and smoothing surfaces after the main cutting tools have done most of the shaping.
• Instead of slicing like a gouge, a scraper removes wood with a controlled scraping action. This makes it especially helpful when you want to fine-tune a surface or deal with tricky grain.
• Scrapers can be used to:
• Smooth uneven areas
• Refine curves and transitions
• Clean up end grain
• Flatten bottoms or shoulders
• Reach tight or awkward spots

Carbide Tipped Tools

• Carbide cutting tips will last up to 50 times longer than High Speed Steel (HSS). K10 carbide has an extremely high hardness of 92HRC. This completely removes the need to re-sharpen the cutter.  When the cutting edge eventually dulls, each tip can simply be rotated so a new cutting face is used. The Round and Square cutters can be rotated 4 times, the triangle cutter can be rotated twice. After all faces have been used, replace the cutting tip with a new one.
• The round steel shaft sits comfortably on the the tool rest. It is 10mm diameter with enough strength to eliminate vibration from the cutting tip.
• This set is suitable for all kinds of spindle and bowl turning. Can be used with softwoods and hardwoods.

HSS vs Carbide?

• Traditional wood turning chisels are made from HSS. It takes many many hours of practice to master the use of a HSS bowl gouge.  It can also take a while to master sharpening of the chisels too. It is therefore not surprising that people who have learned those skills remain very loyal to HSS chisels.
• Carbide scraper tools require no sharpening or steep learning curve to use them. New wood turners can pick up a carbide chisel and get instant, satisfying results. The surface finish is not as good, but with an extra couple of minutes sanding, carbide chisels achieve exactly the same results as HSS chisels. Carbide turning tools have been responsible for introducing many new people to the world of woodturning.

• Cutter Material: K10 Carbide 92HRC
• Tip Shape: 11mm Square
• Shaft Length: 120mm
• Handle Length: 220mm
• Total Tool Length: 340mm
• Weight: 200g
