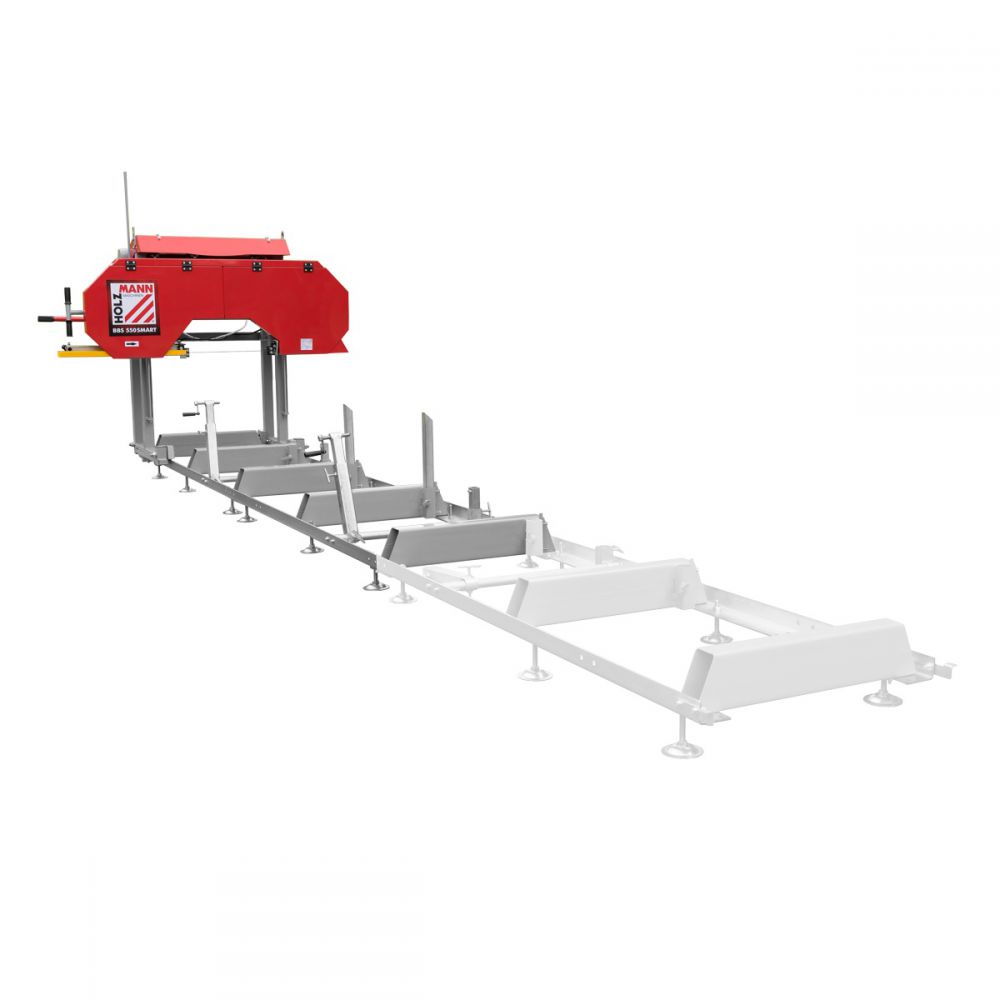

Holzmann BBS550SMART Horizontal Band Re-Saw 1050 x 550 mm - 415v
Product Code: HOL/BBS550SMART
Brand: Holzmann
£3,539.99 Inc. VAT
£2,949.99 Exc. VAT
Holzmann BBS550SMART
Horizontal Band Re-Saw 1050 x 550 mm - 415v
Key Features
The machine designed exclusively for cutting soft, hard, dry, raw or frozen timber or wooden prisms, with lengths according to the machine design.
- the cutting length depends on the number of expanding sections
- all types of timber can be cut with the same band.
- solid and twist free construction
- low level of required maintanance
- easy handling

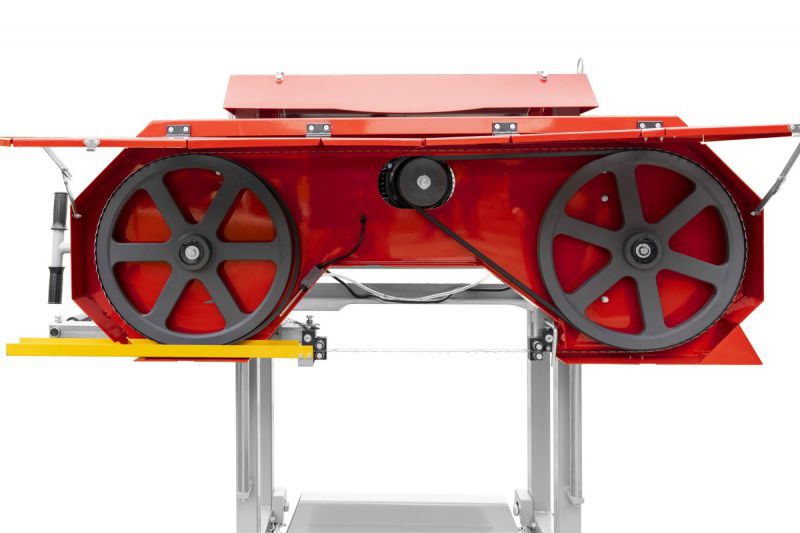

- massive cast iron drive wheel
- precise guide
- eccentric clamp system
- manual height (thickness) adjustment
- manual cutting feed
- BBS550SMART from 1050mm x 550mm dia horizontal band re-saw + manual feed and cutting height adjustment + optional track sections according to length required + massive cast iron drive wheel 415v
Technical details
motor data
-
motor power s1 in W 5500
-
voltage 400V / 3 / 50Hz
measurements
- total dimensions in mm 4350x1600x1800
workpiece measurements
- min. workpiece length in mm 1050
band saws
- saw band in mm 3658x25x0,9
- saw band speed in m/min 1080
- flywheel diameter in mm 475
- max. log diameter in mm 550
- max. opening between blade guides in mm 530
- kerf thickness in mm 1,5-2,2
- track section in m 2,0
volume level and vibration
- sound power level in dB(A) 98
- sound pressure level in dB(A) 89
weight
- gross weight in kg 387
- net weight in kg 355
packaging
- packaging width in mm 630
- packaging length in mm 2170
- packaging height in mm 860
