Holzmann FKS305V32TOP 250-315mm Panel Saw with Sliding Table and Extension Arm 415v
Product Code: HOL/FKS305V32TOP
Brand: Holzmann
£5,159.99 Inc. VAT
£4,299.99 Exc. VAT

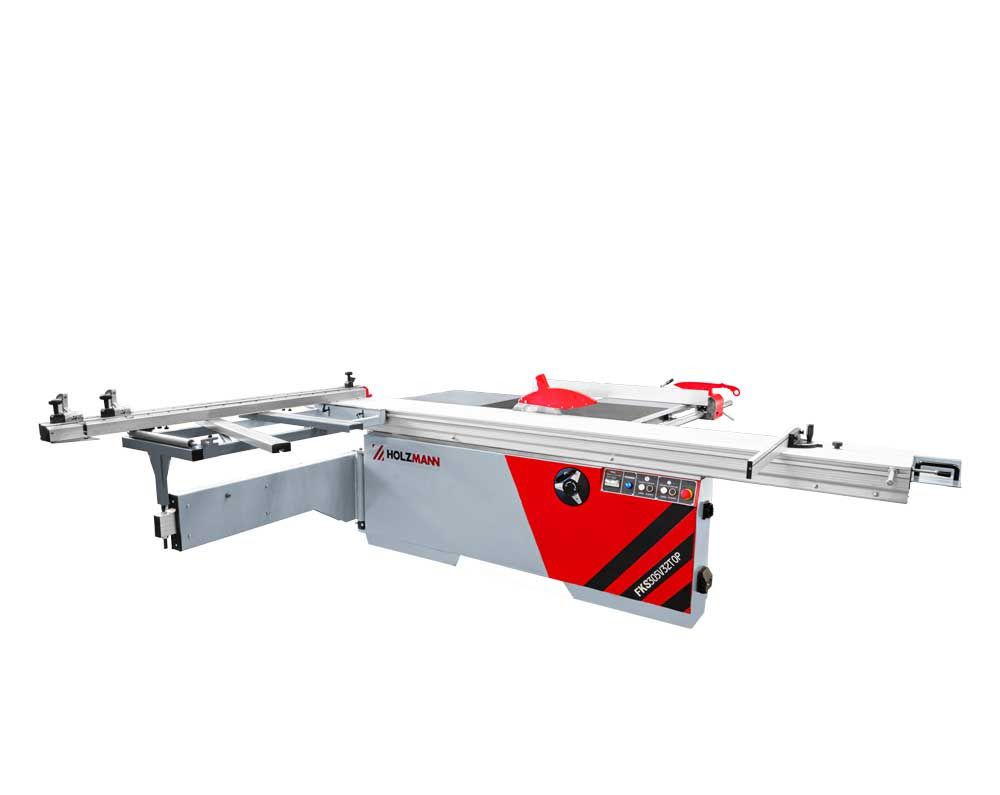

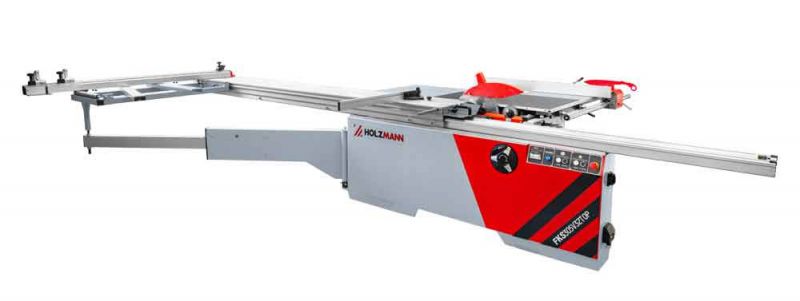

Holzmann FKS305V32TOP
250-315mm Panel Saw with Sliding Table and Extension Arm 415v

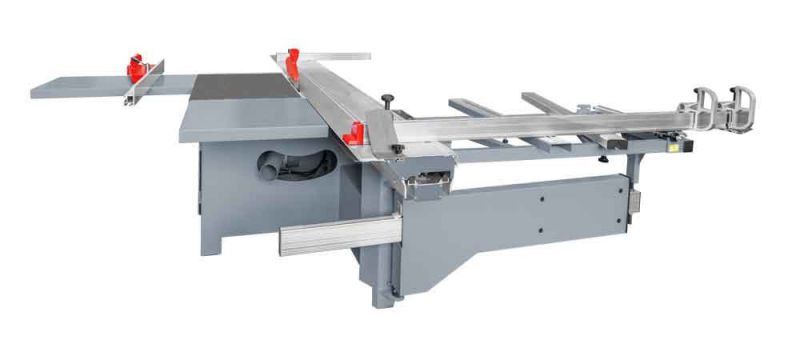

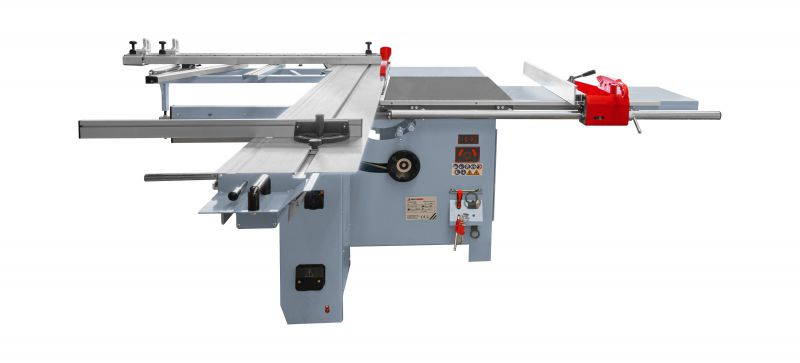

The HOLZMANN panel saw FKS305V32TOP with 3.2 m sliding table, scoring unit (height and side adjustable), main saw blade with height and angle adjustment, table extension, outrigger table – a perfect saw for processing your panels in your joinery workshop.
Key Features
- solid design.

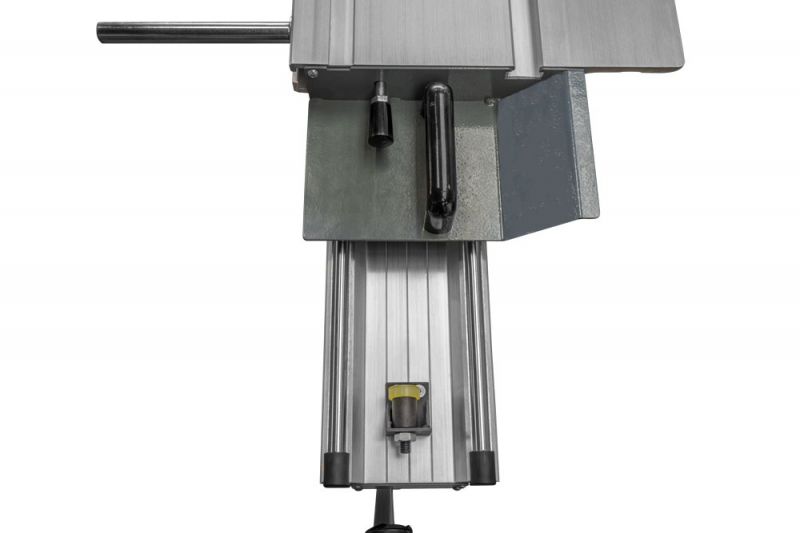

- with large aluminium sliding table and extension arm ideal for processing large workpieces and cutting large, heavy panels to size
- Cast iron work table (935 x 600 mm) incl. table widening (900 x 500 mm) and table extension (600 x 520 mm) of solid steel construction

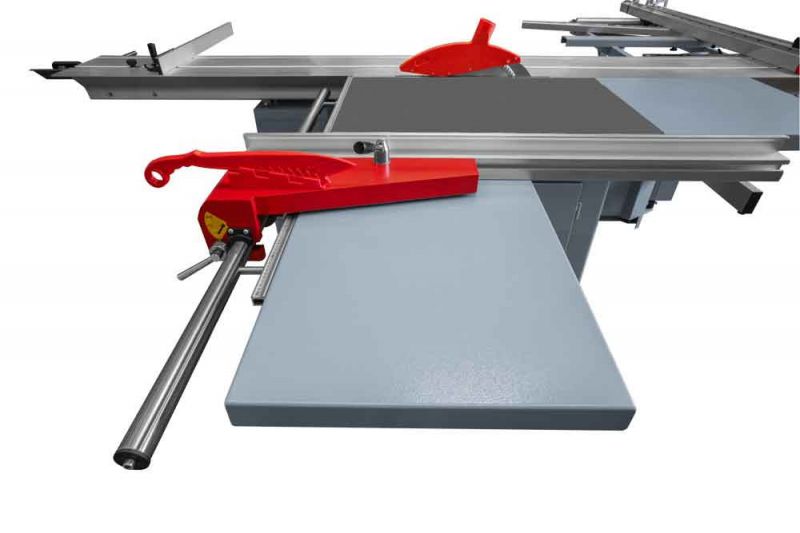

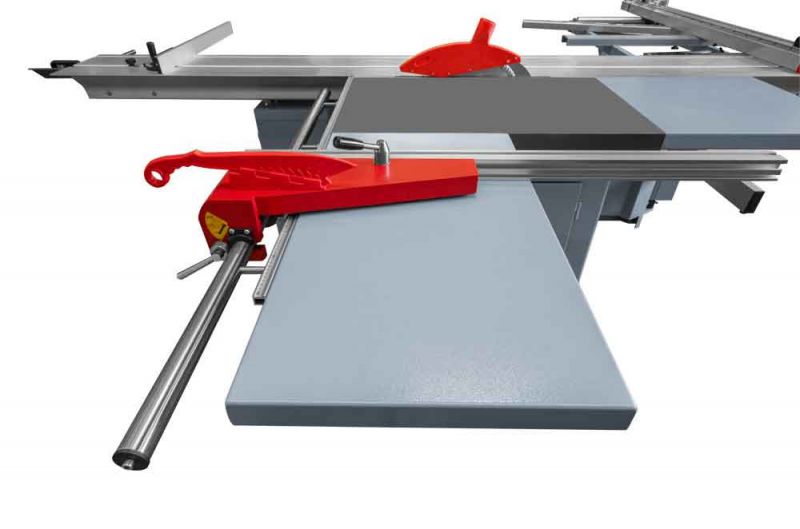

- outrigger table 1200 x 530 mm + cross cut fence 1950 – 3300 mm
- including scorer with own motor and manual height and side adjustment

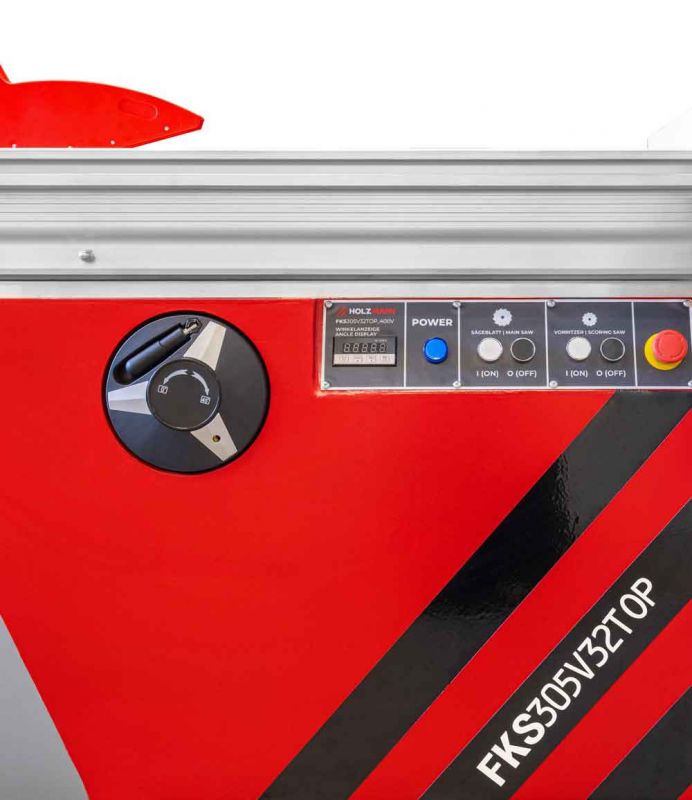

- manually tiltable saw blade 0°-45° (via angle indicator)

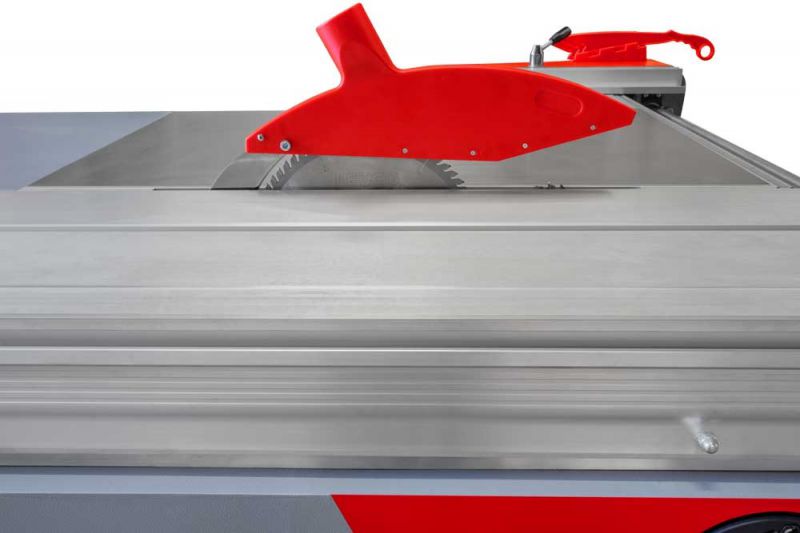

- manual height adjustment of the main saw blade and scorer
- includes main saw blade (TCT: Ø300 x 30 x 3,2 mm T(72)) and scoring saw blade (Ø120 x 20 x 3-3,8 T=24)
Technical details
motor data
- motor power s1 in W 5500 (/750)
- voltage 400 V / 50 Hz
measurements
- table height in mm 890
- sliding table in mm 3200 x 360
- outrigger table in mm 1220 x 530
- dust collector port in mm 100
- total dimensions in mm 3250 x 3390 x 870
cutting performance
- max. cutting width at parallel fence in mm 1250
circular saws
- sawblade in mm 250-315 (/30)
- sawblade speed in min-1 (I): 4000 (II): 6000
- scoring sawblade in mm Ø120 x 20 x 3,2-4,2/2,2
- scoring unit motor power in W 750
- scoring unit speed in min-1 8000
- sawblade swivel 0-45°
volume level and vibration
- sound power level in dB(A) 90
- sound pressure level in dB(A) 88,2
weight
- gross weight in kg 810
- net weight in kg 645
