Holzmann FKS400V32TOP 400mm Panel Saw with Sliding Table and Extension Arm 415v
Product Code: HOL/FKS400V32TOP
Brand: Holzmann
£8,099.99 Inc. VAT
£6,749.99 Exc. VAT

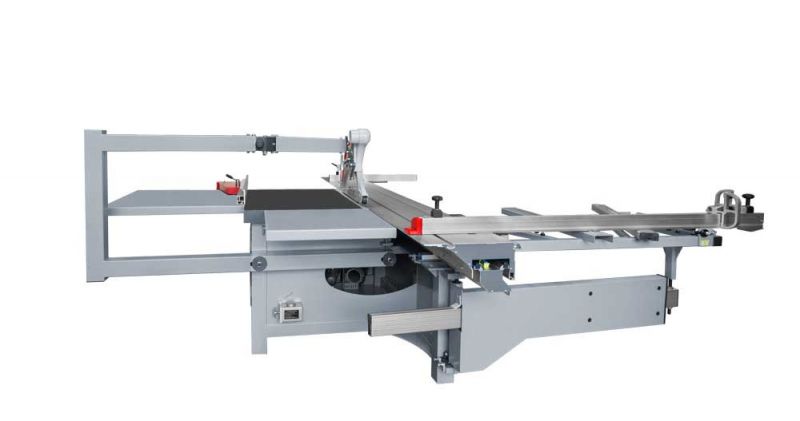

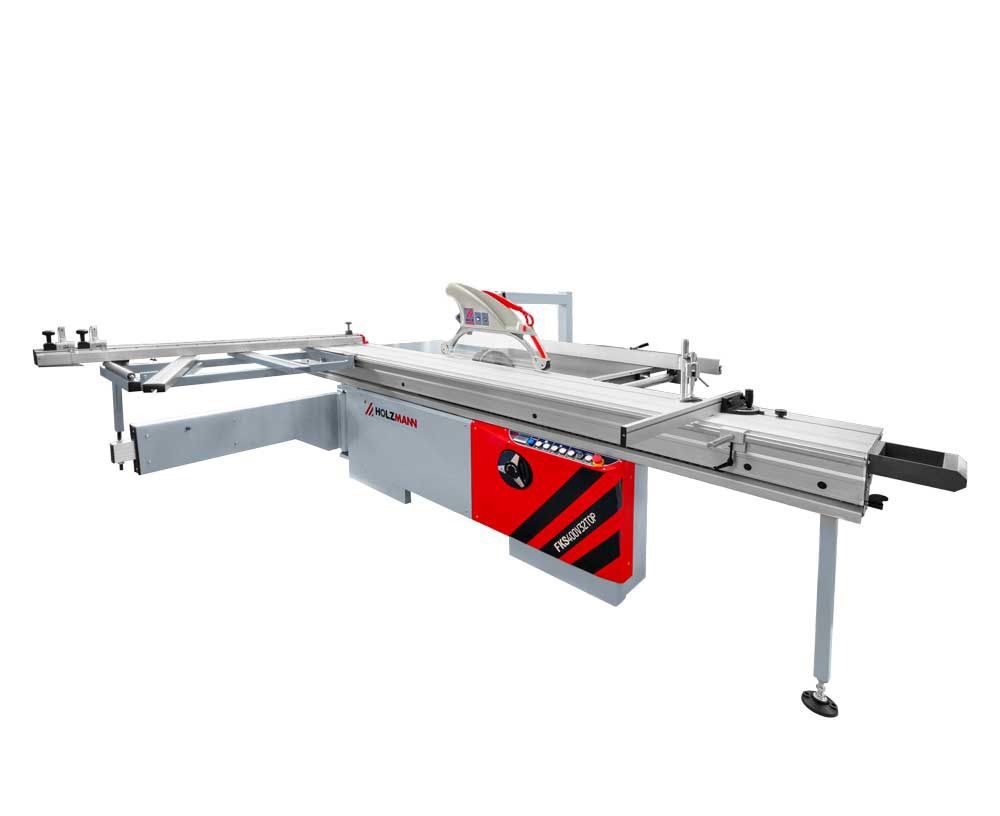

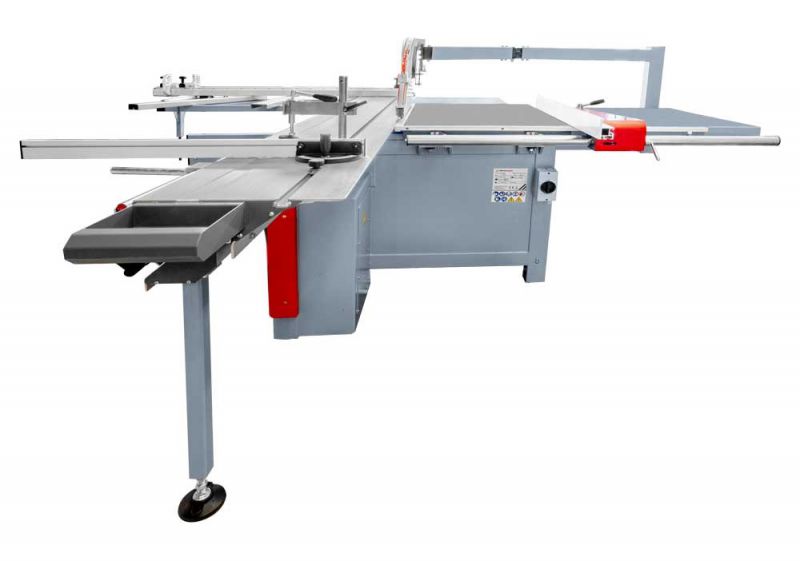

Holzmann FKS400V32TOP
400mm Panel Saw with Sliding Table and Extension Arm 415v
The HOLZMANN panel saw FKS400V32TOP with 3.2 m sliding table, scoring unit (height and side adjustable), main saw blade with height and angle adjustment, table extension, outrigger table – a perfect saw for processing your panels in your joinery workshop.
Key Features
- Solid design
- with large aluminium sliding table and extension arm ideal for processing large workpieces and cutting large, heavy panels to size
- cast iron work table (1100 x 700 mm) incl. table wideing (900 x 830 mm) and table extension (610 x 600 mm) of solid steel construction

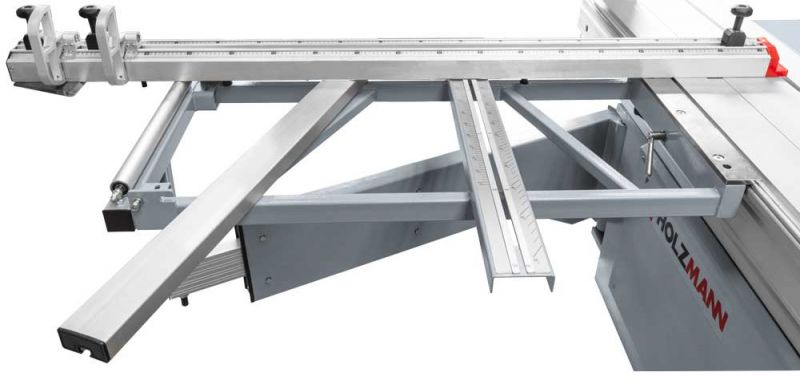

- outrigger table 1200 x 550 mm + cross cut fence with 1950 – 3300 mm

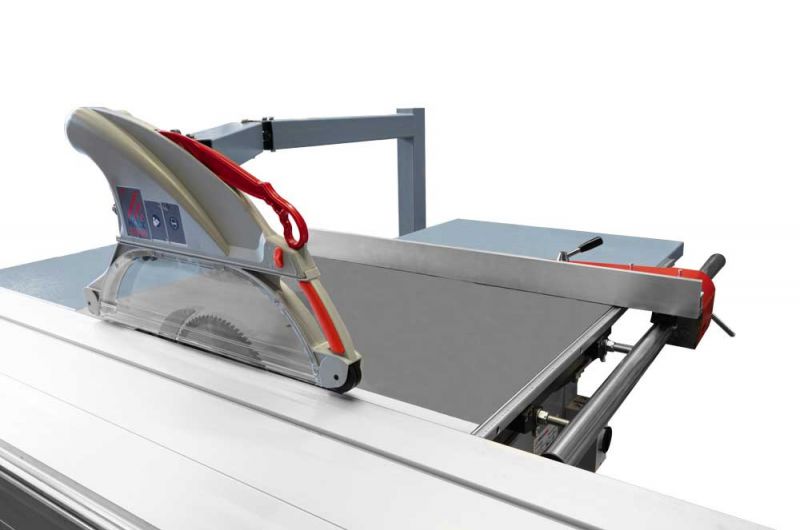

- including scorer with own motor
- manually tiltable saw blade 0°-45° (via angle indicator)
- electric height adjustment of the main saw blade and scorer
- max. cutting height 130 mm with saw blade diameter of 400 mm
- includes main saw blade (TCT: Ø300 x 30 x 3,2 mm T(72)) and scoring saw blade (Ø120 x 20 x 3-3,8 T=2*12ES)
Technical details
motor data
- motor power s1 in W 5500 (/750)
- voltage 400 V / 50 Hz
measurements
- table height in mm 890
- dust collector port in mm 1x Ø100, 1x Ø80
- total dimensions in mm 4730 x 4860 x 1470
- sliding table in mm 3200 x 435
- outrigger table in mm 1200 x 550
cutting performance
- max. cutting width at parallel fence in mm 1300
circular saws
- sawblade in mm 250-400 (/ 30)
- sawblade speed in min-1 (I): 3000 (II): 4000 (III): 5000
- scoring sawblade in mm Ø120 x 20 x3,2-4,2/2,2
- scoring unit motor power in W 750
- scoring unit speed in min-1 8000
- sawblade swivel 0-45°
volume level and vibration
- sound power level in dB(A) 90
- sound pressure level in dB(A) 88,2
weight
- gross weight in kg 1.110
- net weight in kg 930
