Holzmann HOB310ECOSMW2 Planer Thicknesser with Spiral Cutterhead 230v
Product Code: HOL/HOB310ECOSMW2
Brand: Holzmann
£2,519.99 Inc. VAT
£2,099.99 Exc. VAT

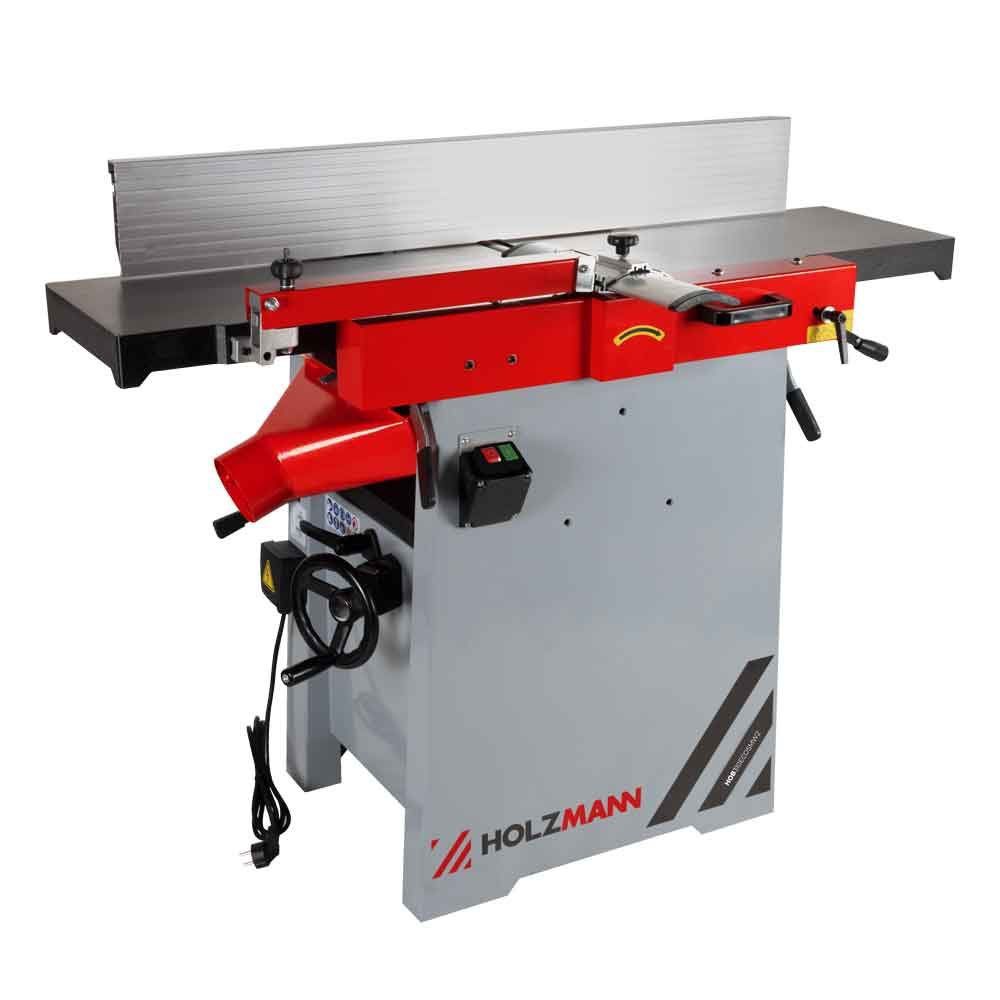

Holzmann HOB310ECOSMW2 Planer Thicknesser with Spiral Cutterhead 230v
The HOLZMANN HOB310ECOSMW2 combinded planer-thicknesser with 310mm blade length, spiral cutter block, planing function and optionally with mortising unit should be part of our woodworking workshop. Very easy to change from planer to thicknesser or thicknesser to planer mode.
Key Features
- Smooth central height adjustment of the thicknesser table incl. counter

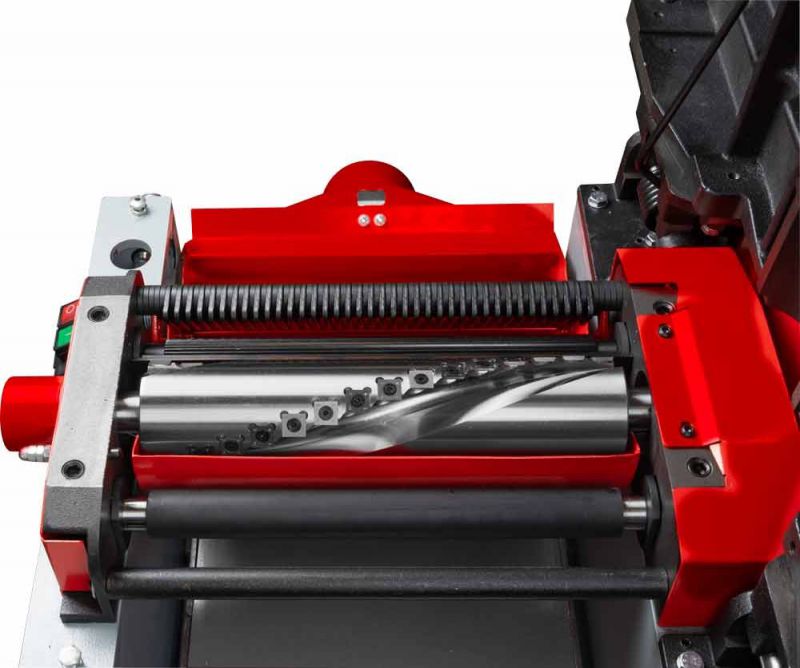

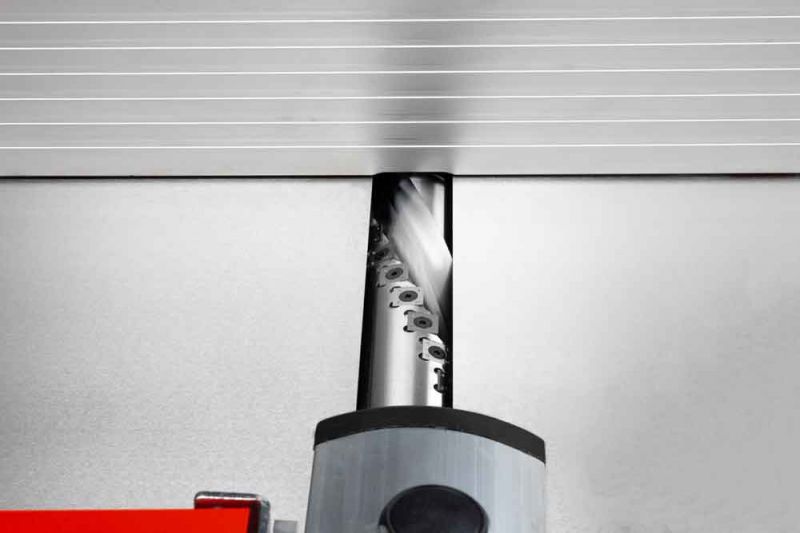

- precisely bedded spiral cutter block
- spiral toothed infeed roller
- planer fence tiltable
- easy to change over (the entire planer table can be folded up)
- includes planing fence, assembled cutter-inserts sets (15 x 15 x 2,5 mm (30°)) 30pcs., +5 pcs cutter-inserts as spare-part, mounting tool, sliding wood
Technical details
planing
- planing table size in mm: 1285 x 310
- thicknesser table height in mm: 852
- max. thicknessing cutting depth in mm: 3
- planer fence in mm: 1100 x 150
- fence tilt: 0 – 45°
motor data
- motor power s1 in W: 2200
- voltage: 230 V / 50 Hz
- feed speed: 5,5 m/min
measurements
- dust collector port in mm: Ø 100
- total dimensions in mm: 1285 x 750 x 1000
thicknessing
- table size in mm: 545 x 308
- cutting depth in mm: 4
- thicknessing height in mm: 225
general planing
- shaft diameter in mm: Ø 70
- shaft speed in min-1: 5500
volume level and vibration
- sound power level in dB(A): 103
- sound pressure level in dB(A): 89,5
weight
- gross weight in kg: 206
- net weight in kg: 179.50
