Holzmann HOB410ECOSMW2 Planer Thicknesser with Spiral Cutterhead 415v
Product Code: HOL/HOB410ECOSMW2
Brand: Holzmann
£3,359.99 Inc. VAT
£2,799.99 Exc. VAT

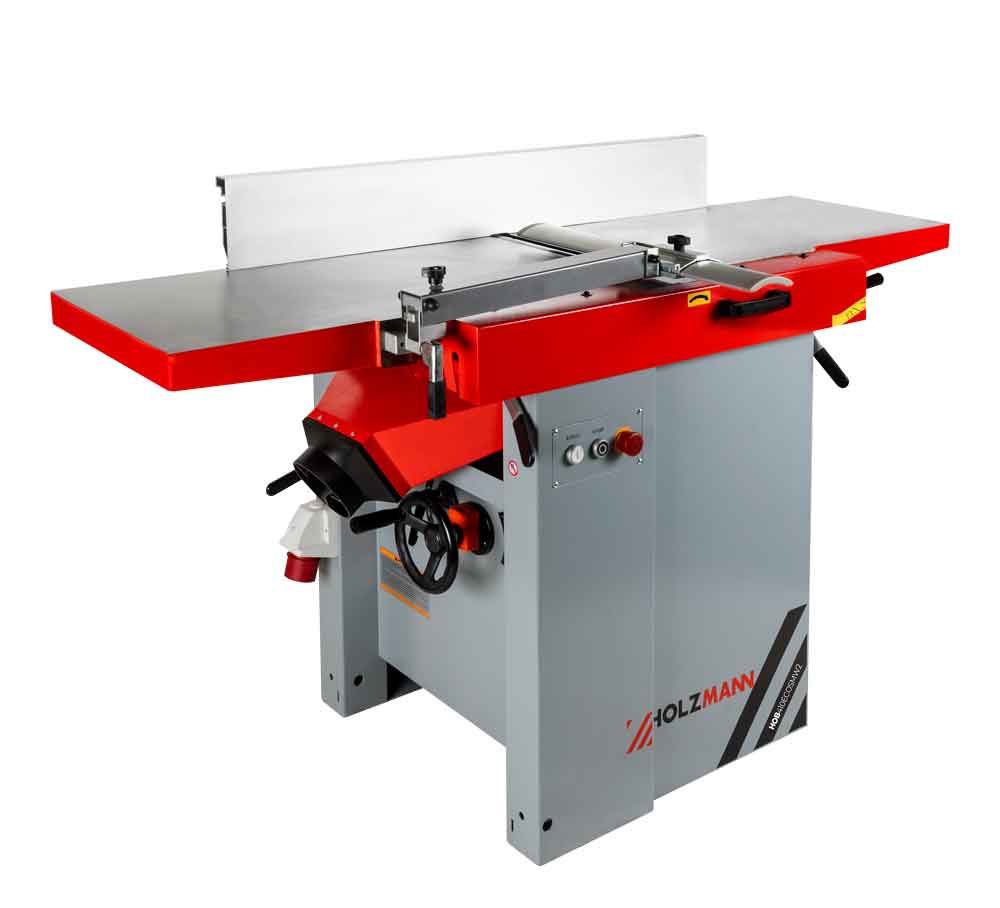

Holzmann HOB410ECOSMW2 Planer Thicknesser with Spiral Cutterhead 415v
The HOLZMANN HOB410ECOSMW2 combinded planer-thicknesser with 410mm cutter-head length, planing function and optionally with extension table should be part of our woodworking workshop. Very easy to change from planer to thicknesser or thicknesser to planer mode.
Key Features
- smooth-running central height adjustment of the thicknessing table incl. counter

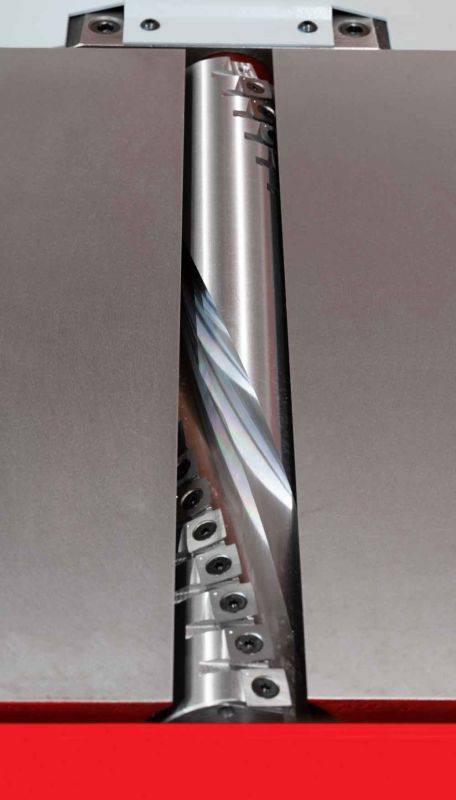

- Spiral cutterblock with cutter inserts (2 grooves, 22 each) assembled
- Spiral-toothed feed roller
- Swivelling planer fence

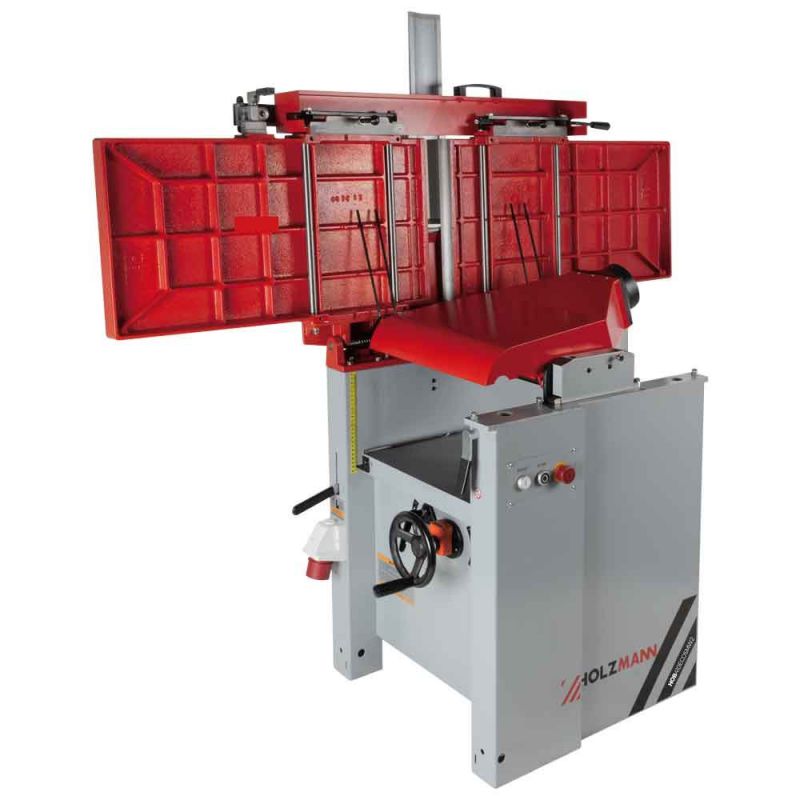

- easy to change over (the entire planer table can be folded up)
- includes planing fence, cutter inserts (15x15x2.5 (30°)) assembled (44 pieces) + 5 spare-parts, assembly tool, sliding block
Technical details
planing
- planing table size in mm: 1660 x 410
- thicknesser table height in mm: 850
- max. thicknessing cutting depth in mm: 4
- planer fence in mm: 1100 x 150
- fence tilt: 0-45°
motor data
- motor power s1 in W: 4000
- voltage: 400V / 3 / 50 Hz
- feed speed: 7 m /min
measurements
- dust collector port in mm: Ø 120
- total dimensions in mm: 1670 x 680 x 1000

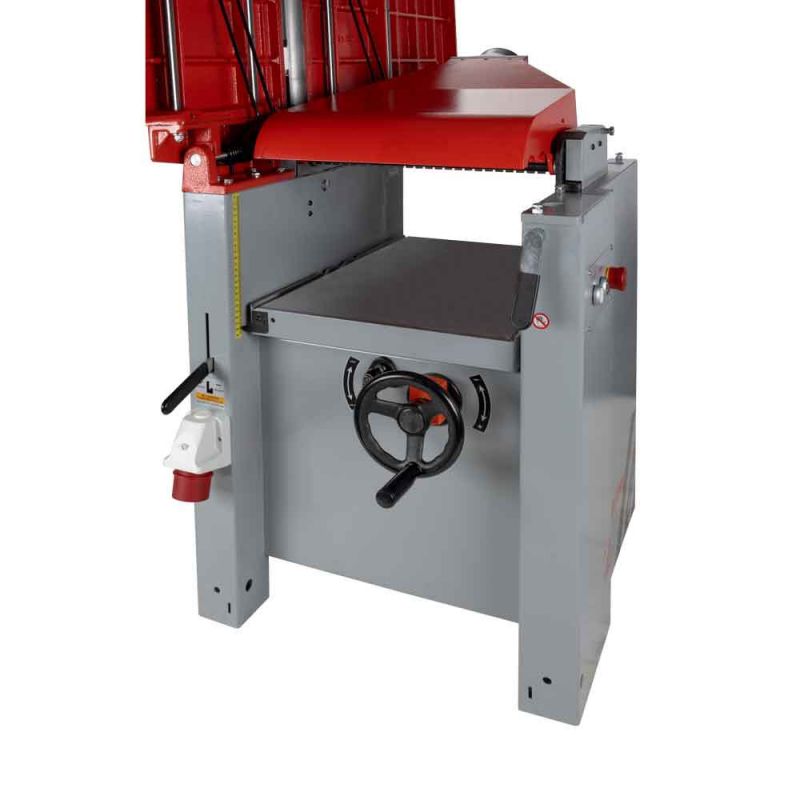

thicknessing
- table size in mm: 650 x 407
- cutting depth in mm: 3
- thicknessing height in mm: 225
general planing
- shaft diameter in mm: 70
- shaft speed in min-1: 5500
volume level and vibration
- sound power level in dB(A): 104
- sound pressure level in dB(A): 86
weight
- gross weight in kg: 353
- net weight in kg: 295
