Laserliner VideoInspector 3D Professional Video Inspection System - 082.270A

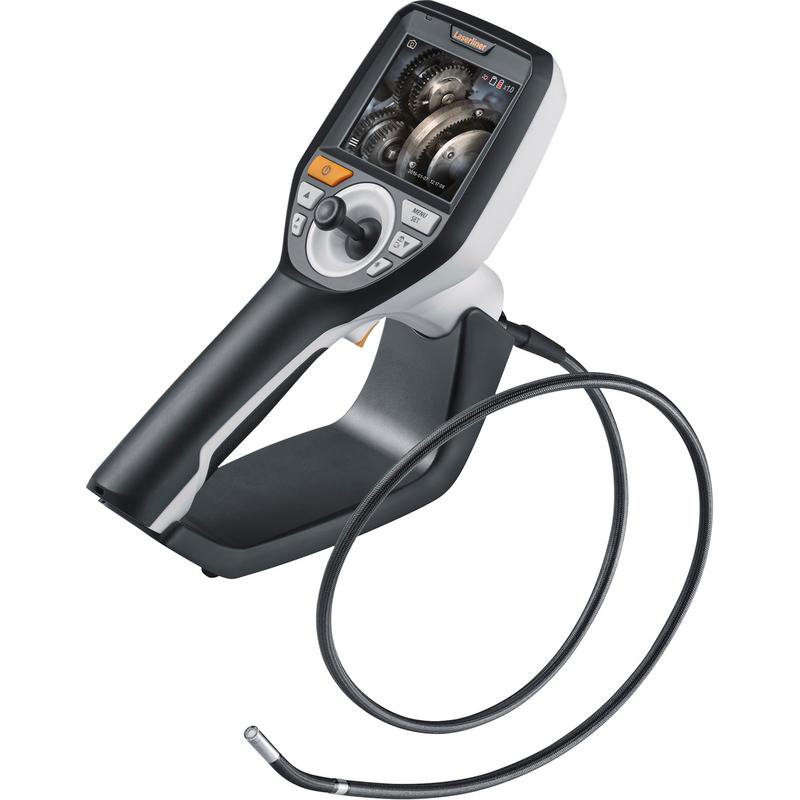

Laserliner VideoInspector 3D Professional Video Inspection System

ref: 082.270A / 32062

This professional video inspection system allows problems to be identified in hard-to-reach places. The camera shows items located behind or within walls, pipework or machinery. The 3D control allows the watertight, movable camera head to be optimally adjusted to suit the location. Object lighting with six high-performance ceramic LEDs ensures images are clear, even in the most demanding conditions. The image can be rotated in 90° increments on the high contrast TFT display. The REC function allows stills and videos to be saved for subsequent analysis. The device has a robust adjustment mechanism and a durable, flexible tungsten cable. Supplied with battery pack, magnetic bracket, USB charging cable, HDMI cable, 8 GB micro-SD card, card reader, screwdriver and carrying case.

• Easy problem localisation behind or in objects, walls, pipes, cavities
• Supplied with battery pack, magnetic bracket, USB charging cable, HDMI cable, 8 GB micro-SD card, card reader, screwdriver and carrying case
• Small camera head, ideal for places that are hard to reach
• Clear images even under the worst conditions
• Manual 3D control of titanium camera head which moves through max. 180°
• Sturdy, durable adjustment mechanism
• Powerful object lighting thanks to 6 high-performance ceramic LEDs
• Image rotation in 90° increments
• Image and video REC function on SDHC memory card
• High-grade, long-life flexible tungsten tubing

• 1 x Laserliner 082.270A VideoInspector 3D Professional Video Inspection System (6 mm 1 m)
• 1 x InspectorCamera 3D 1 m
• 1 x Li-ion battery pack
• 1 x Magnetic bracket
• 1 x USB charging cable
• 1 x HDMI cable
• 1 x 8 GB micro SD card
• 1 x Card Reader
• 1 x Screwdriver
• 1 x Carrying case

• Live display: Yes
• Image/video recording: Yes
• Image/video playback: Yes
• Digital zoom: Yes
• Object illumination: Yes
• Controllable camera head: Yes
• Time stamp: Yes
• Image alignment: Yes
• External image/video output: Yes
• Data transfer: Yes
• Diameter Camera Head: 6 mm
• Camera Resolution: 960 x 720 pixels
• Field of View (FOV): 85°
• Depth of Focus (DOF): 2.5 10 cm
• Screen Type: 3,5" Colour TFT
• Display Resolution: 640 x 480 pixels
• Image Format: JPEG
• Length of Probe: 1 m
• Illumination: 7 brightness levels
• Digital Zoom: 10 zoom levels
• Memory: Micro-SD memory card up to 8 GB
• Port: Video (HDMI)
• Dimensions (W x H x D): 115 mm x 190 mm x 115 mm
• Weight: 485g
