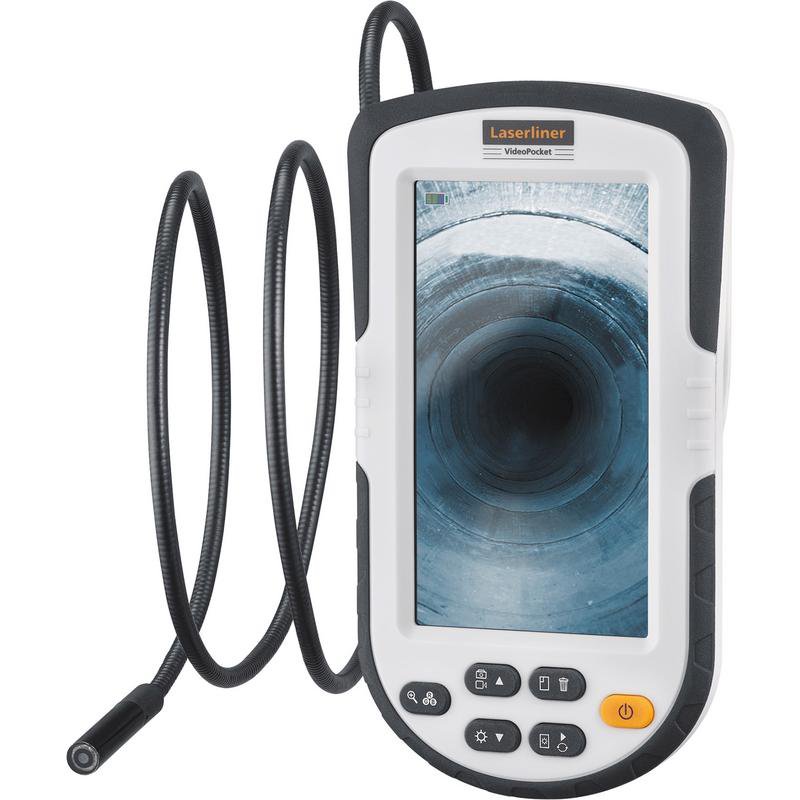

Laserliner VideoPocket Extra Compact Video Inspection System - 082.261E

Laserliner VideoPocket Extra Compact Video Inspection System

ref: 082.261E / 32008

This compact video inspection system allows easy visual inspection of hard-to-reach locations such as pipework, suspended ceilings and vehicles. Six powerful LEDs on the waterproof camera unit, adjustable in ten settings, ensure effective illumination of the object during use. Details can be clearly captured using the zoom function. Inspection results are clearly identifiable thanks to the large colour display and image alignment. The compare image function allows the user to see the differences between the live image and a saved reference image. The housing is largely made of recycled material and makes a valuable contribution to sustainability

• Sustainable design: large proportion of the housing is made from recycled plastic
• Mirror allows objects to be viewed at 90° angle
• Effective problem localisation behind or in objects, walls, pipes, cavities
• Identify specific differences with the compare image function
• Powerful object lighting thanks to six high-performance LEDs
• Large, exceptionally easy-to-read display
• Suitable image available on the monitor through rotation and mirroring
• Waterproof and dustproof camera unit
• Magnet, mirror and hook mount for fixing on the camera head
• Pull/lift difficult to reach objects

• 1 x Laserliner 082.261E VideoPocket Extra Compact Video Inspection System
• 1 x TopClips
• 1 x Batteries
• 1 x Softbag

• Live display: Yes
• Image/video recording: Yes
• Image/video playback: Yes
• Internal image memory: Yes
• Image comparison: Yes
• Object illumination: Yes
• Image alignment: Yes
• Digital zoom: Yes
• Data transfer: Yes
• Diameter Camera Head: 8mm
• Camera Resolution: 640 x 480 pixels
• Field of View (FOV): 65°
• Depth of Focus (DOF): 3 8 cm
• Screen Type: 4,3"
• Display Resolution: 480 x 272 pixels
• Image Format: JPEG
• Length of Probe: 1 m
• Illumination: 10 brightness levels
• Digital Zoom: 2x digital zoom in 25% increments
• Memory: Micro-SD memory card up to 32 GB
• Port: Micro USB
• Power Supply: 4 x 1.5V LR6 (AA)
• Dimensions (W x H x D): 85 mm x 155 mm x 32 mm
• Weight: 366g (incl. Batteries)
