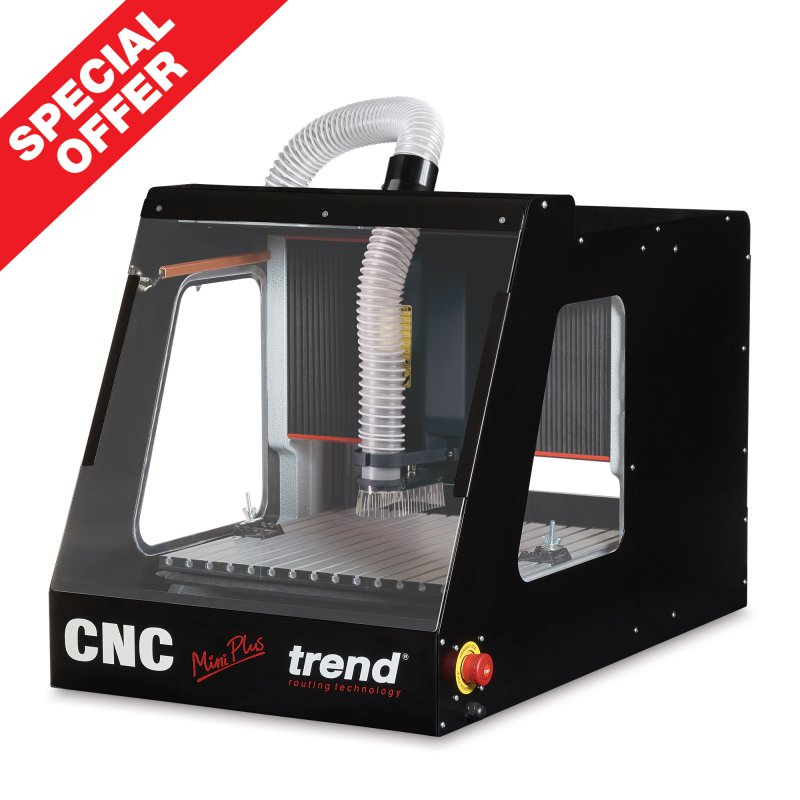

TREND CNC/MINI/2 CNC MINI PLUS CARVING/ENGRAVER MACHINE

Trend CNC Mini Machines
CNC Mini Plus Engraving Machine 240V - UK and ROI sale only
Ref: CNC/MINI/2

• Latest desktop miniature engraving machine for 2D and 3D engravings, photo images and routing projects complete with easy to learn software.
• CNC Carving Machine can create or import G-Codes for CNC carving programs. This function allows you to use additional software programs; such as VCarve, ArtCAM and BMP programmes.
• Desktop model with micro switch fully guarded safety dust cover for safe operation making it ideal for education.
• Table size 450mm x 440mm, with total engraving area (XYZ travel) 300mm x 300mm x 100mm.
• Brushless 150 watt DC motor for low noise and durability with 1/4-inch collet capacity.
• Use with hardwoods, soft woods, exotic woods, and many synthetic materials such as acrylic and ABS plastic, foam, modelling wax, styrene, epoxy board. Ideal for use with white, brown and clear acrylic to create highly detailed carvings.
• Works with any PC computer running Windows XP up to Windows 10.
• Endless possibilities in what you can create: use images from digital photos, CAD drawings, computer generated art programs, scanned images and more.
• Includes a simple, straight forward common platform software package.
• Includes 1/8-inch, 4mm and 1/4-inch collets.
• Supplied with two solid carbide engraving cutters Ref. S66/2X4MMSTC & S66/4X4MMSTC.
• For UK sale only.

• 1 x USB 2.0 cable
• 1 x Bravo Edit software disk
• 1 x Workpiece clamp set (comprising two large and two small clamps)
• 1 x USB controller
• 1 x Collet extension kit with 1/8", 4mm and 1/4" collet
• 1 x Support board
• 1 x Silicon mat
• 1 x Ball nose carving cutter R0.5mm STC
• 1 x Conical radius carving cutter R0.5mm STC
• 2 x Brown acrylic sheet 186x135x2mm
• 1 x White acylic sheet 186x135x2mm
• 1 x Starting point paper
• 1 x Hex key 2.5mm A/F
• 1 x Instruction manual

• For UK sale only.
• Voltage: 240 volt
• Table size X-axis: 450 mm
• Table size Y-axis: 440 mm
• Table load weight max: 5 kg
• Max.movement X-axis: 300 mm
• Max.movement Y-axis: 300 mm
• Max.movement Z-axis: 100 mm
• Max. material thickness: 100 mm
• Max. engraving speed: 2500 mm/min
• Min. engraving speed: 25 mm/min
• Resolution mechanical: 0.02 mm/step (0.001 inch/step)
• Resolution software: 0.02 mm (0.001 inch)
• Power supply input: 220-240V
• Power supply output: DC 24V 6.5A
• Spindle motor: 150 watt DC
• Power consumption: 2.0A
• Collet capacity max: 1/4-inch
• Operating noise level: 39.6 dB(A) standby
• No loading operation noise: <66 dB(A)
• Spindle speed: 0-17000 rpm
• Interface: USB 2.0
• System requirements: PC running Windows XP up to Windows 10
• Machine size depth: 925 mm
• Machine size width: 597 mm
• Machine size height: 633 mm
• Weight: 54.5 kg
