Tormek SQ-90 Square

Tormek SQ-90 Square

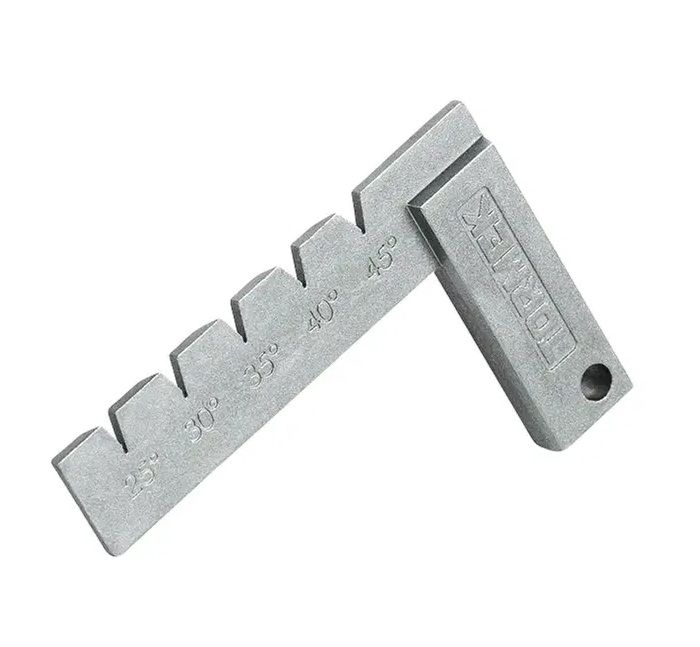

• The SQ-90 Tormek Square is designed for accurate, repeatable setup work. It is fully cast in zinc for durability and dimensional stability. It features a hole for a key ring or similar attachment, making it easy to keep close at hand in the workshop. The Tormek logo is clearly marked on both sides.
• The SQ-90 Tormek Square is compatible with all Tormek sharpening systems and intended for general sharpening use where precision setup and control are essential.
• Check that the edge on chisels and other square edge tools is exactly 90°.

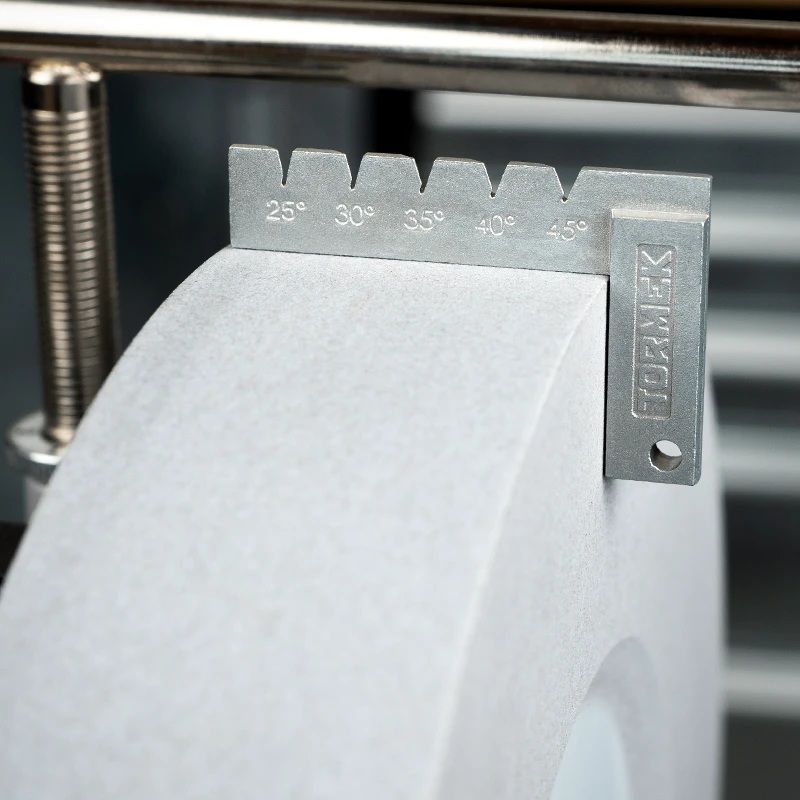

• Check the grindstone for trueness using the straight reference edge.

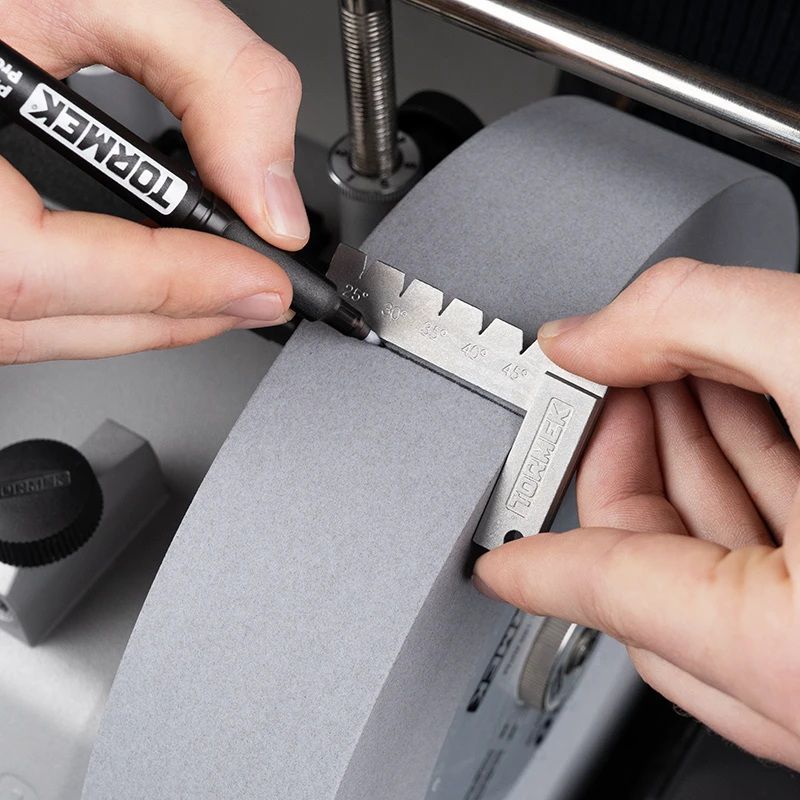

• Draw a straight reference line across the grinding wheel, useful for setting up the SVD-186 R Gouge Jig or the SE-77 Square Edge Jig.

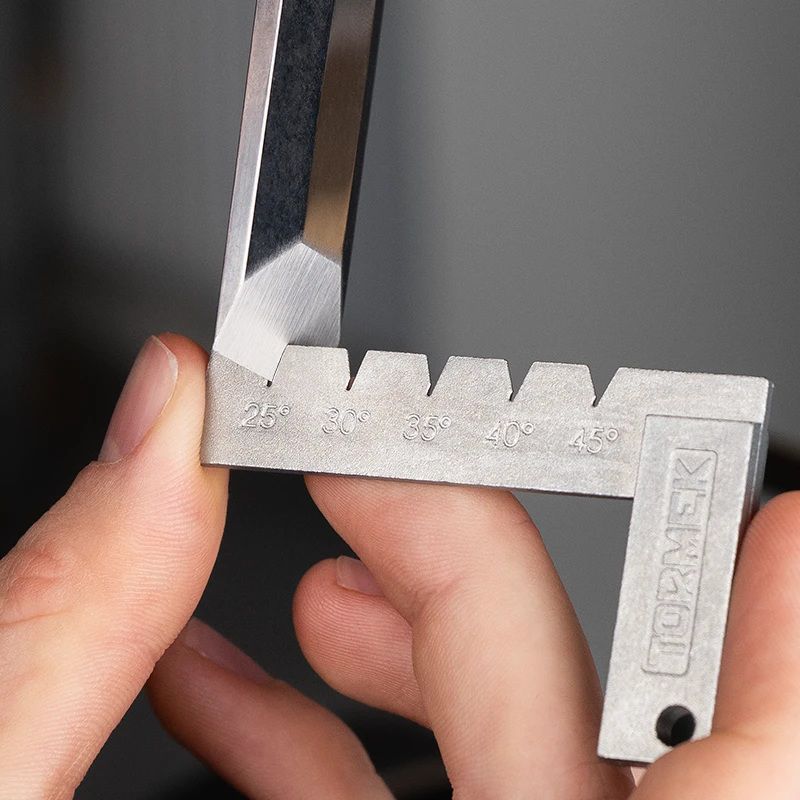

• Measure the approximate edge angle of your tools using the five integrated V-shaped grooves at 25°, 30°, 35°, 40°, and 45°.

• Width: 61 mm (2 3/8")
• Depth: 40 mm (1 9/16")
• Height: 6 mm (1/4")
