UJK Circle Cutting Jig with 6mm x 22mm Spiral Cutter (1/4") - 10021

UJK Circle Cutting Jig with 6mm x 22mm Spiral Cutter (1/4")

ref: 10021

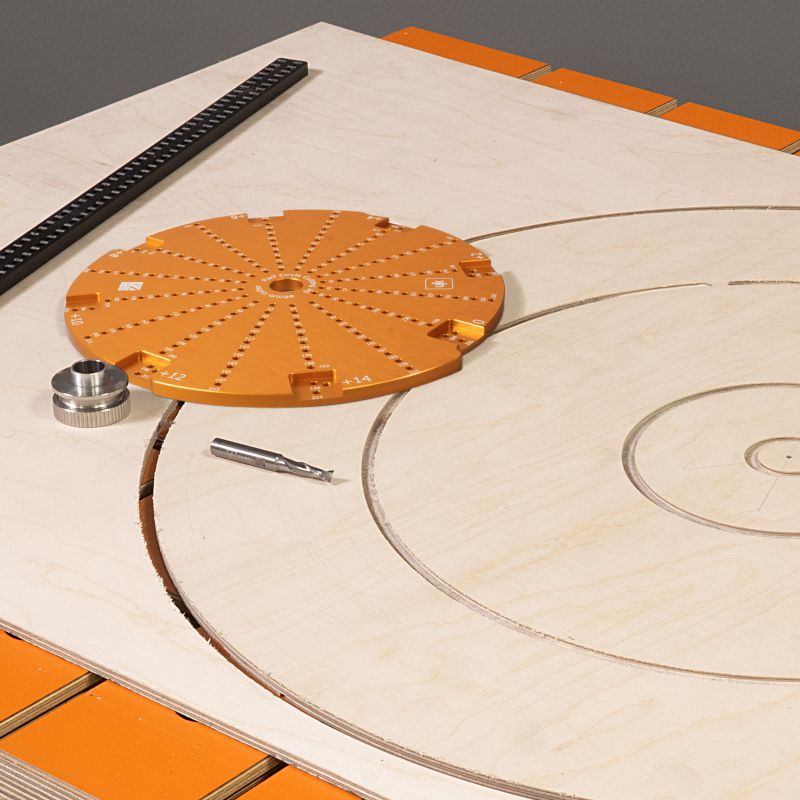

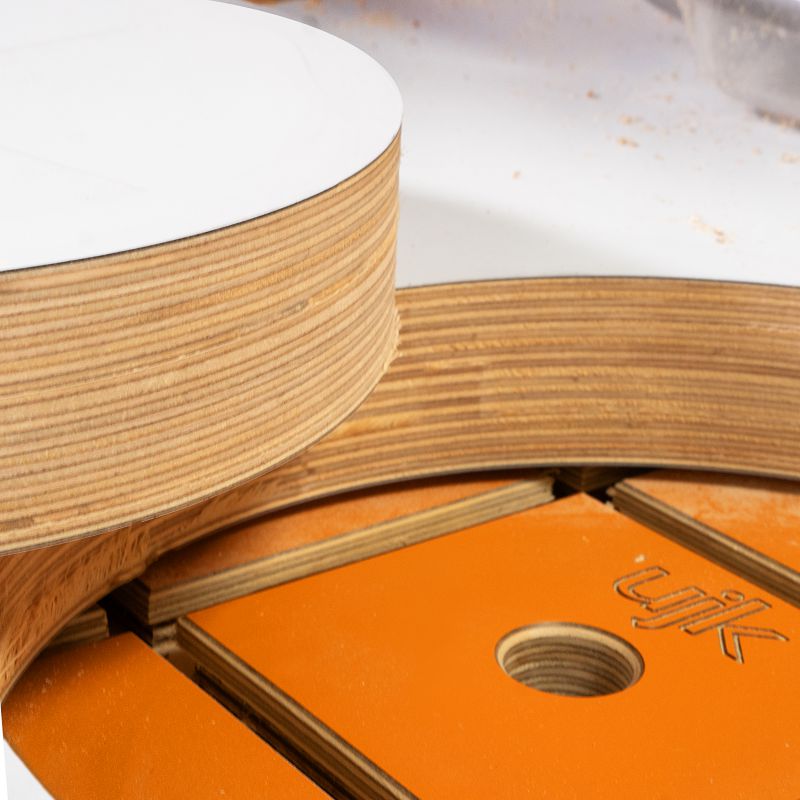

• Rout perfect, accurate, smooth circles, discs and arcs using the UJK Circle Cutting Jig. The newest addition to the Parf range where a grid workbench isn’t required. The UJK Circle Cutting Jig is engineered for absolute accuracy and total control.
• Mark, set and rout circles from 40mm up to 1,251mm, in 1mm increments, precisely and cleanly.

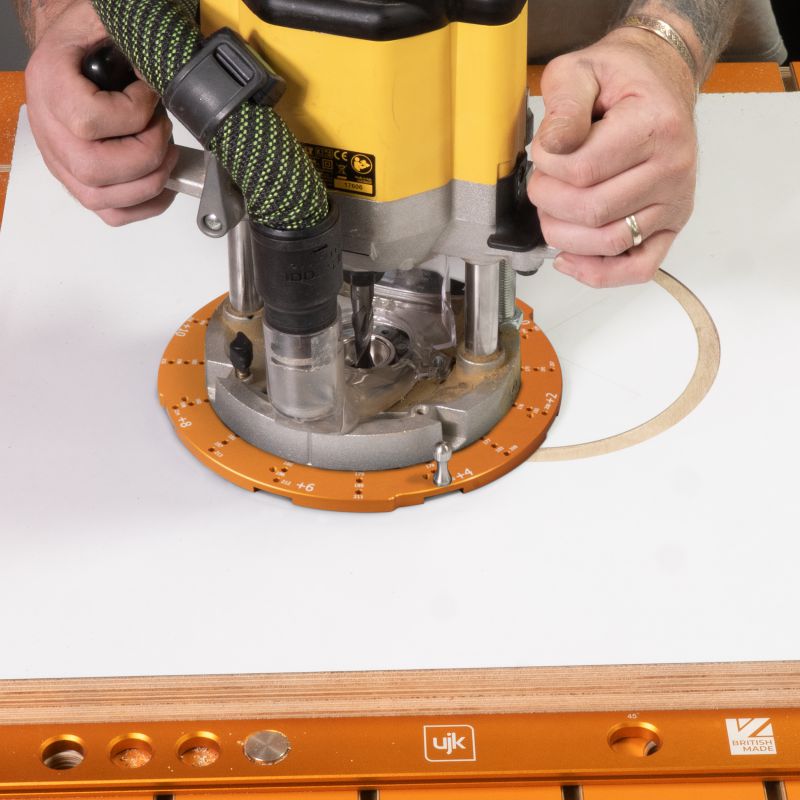

• Designed to be used with a ¼” or ½” router, each part of the jig has been carefully developed and refined to remove guesswork. The precision drill guide ensures the pilot hole is drilled perfectly straight, essential for achieving a true circle, The calibrated spiral scale & 3mm pivot holes with inserted pin hold the jig firmly in place allowing the jig and router to pivot smoothly.

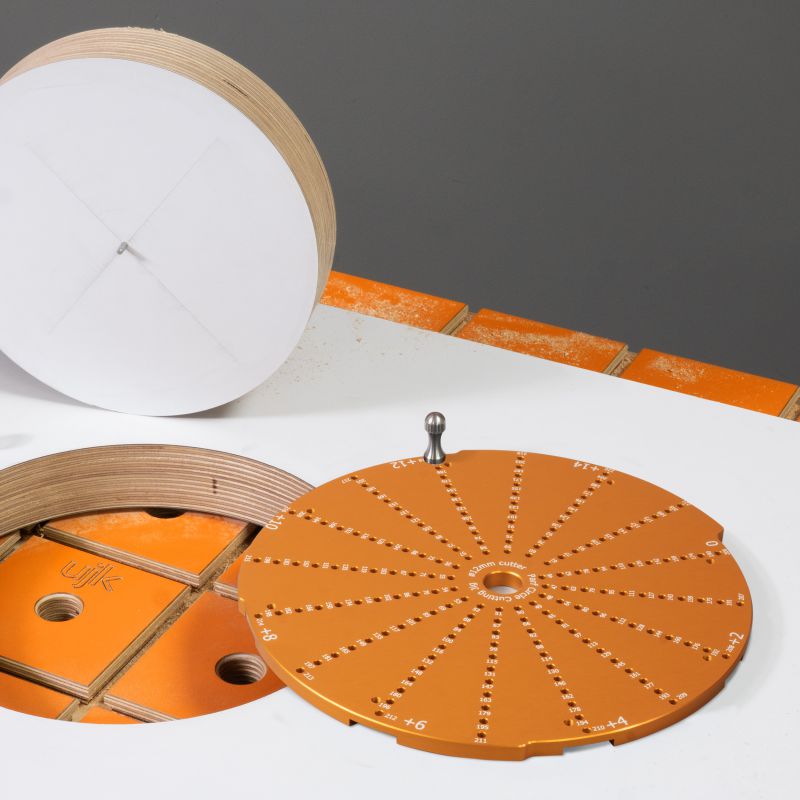

• Used with a 16mm guide bush and a 6mm spiral carbide cutter with upcut shear action, the result is clean, controlled cuts, whether cutting right through or forming precise recesses.

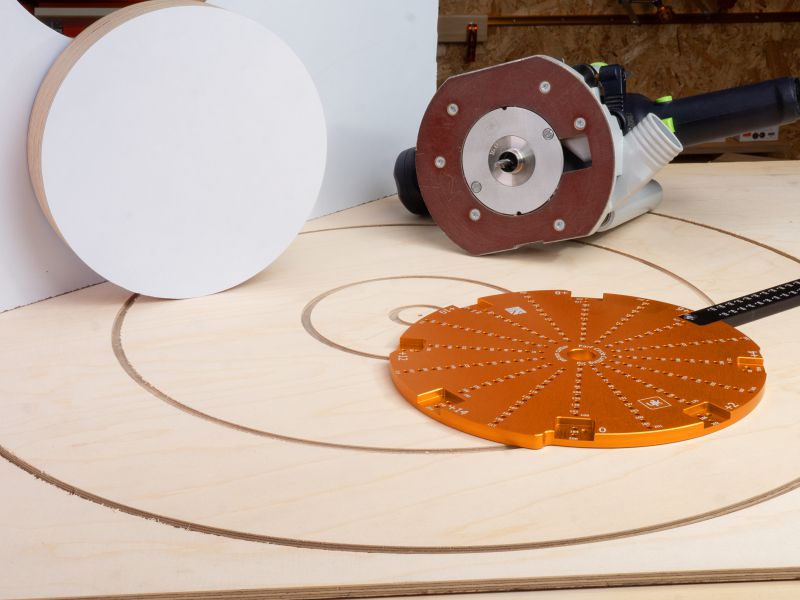

• For larger diameters, the supplied extension arm maintains the same accuracy and ease of use, with an additional pivot pin allowing the jig to be moved smoothly around the work.

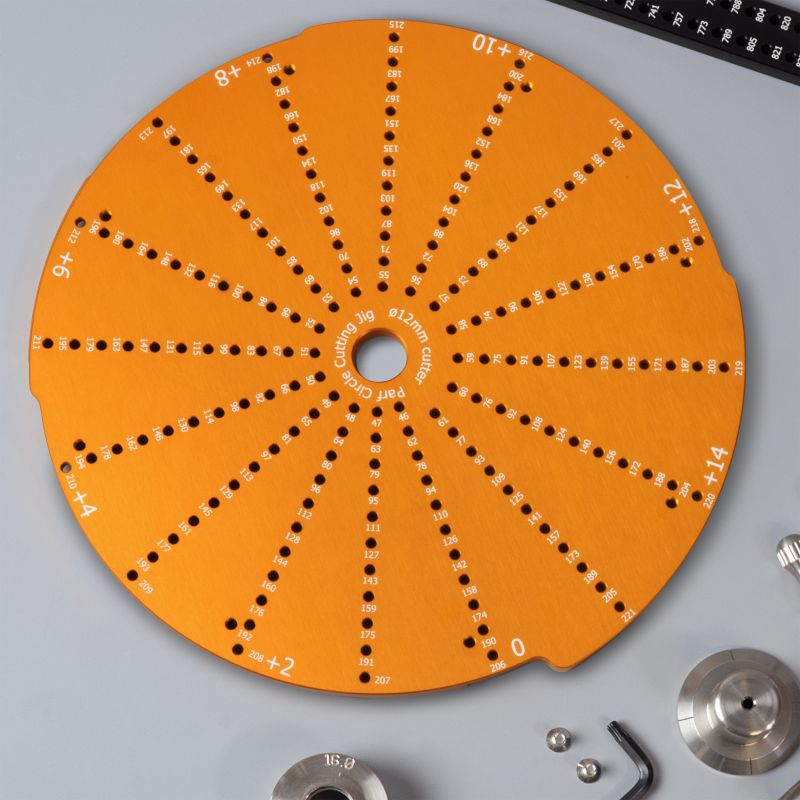

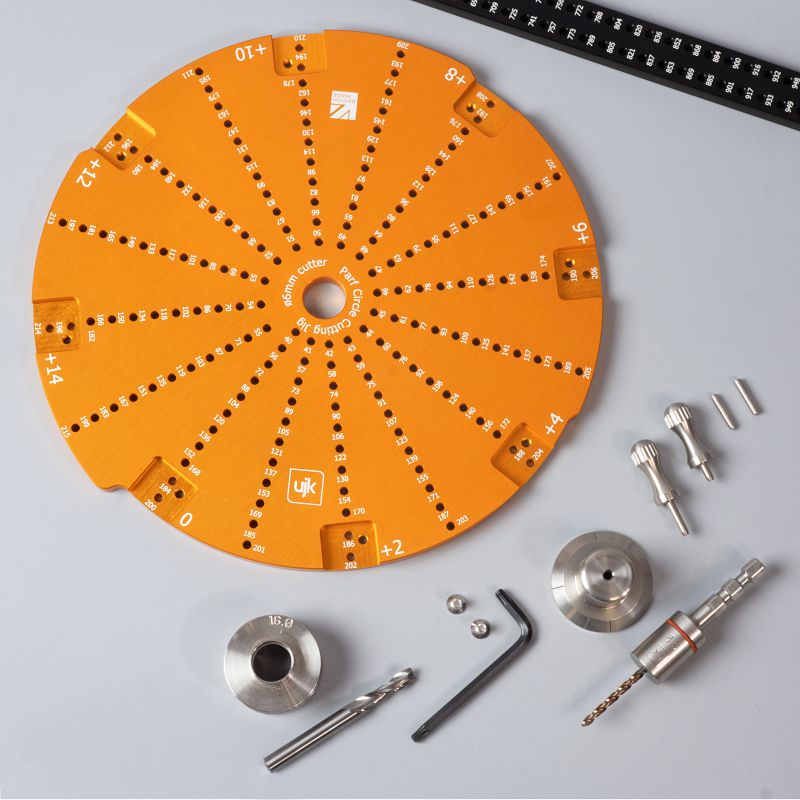

• Each side of the plate is marked to use a 6mm cutter or a 12mm cutter
• Designed for versatility, the UJK Circle Cutting Jig can be used on soft wood, hard wood, MDF, plywood, chipboard and plastic sheet, delivering the same level of accuracy across a wide range of materials. For thicker material a 12mm cutter is available (sold separately).
• Requires a guide bush adaptor to suit your router (sold separately)

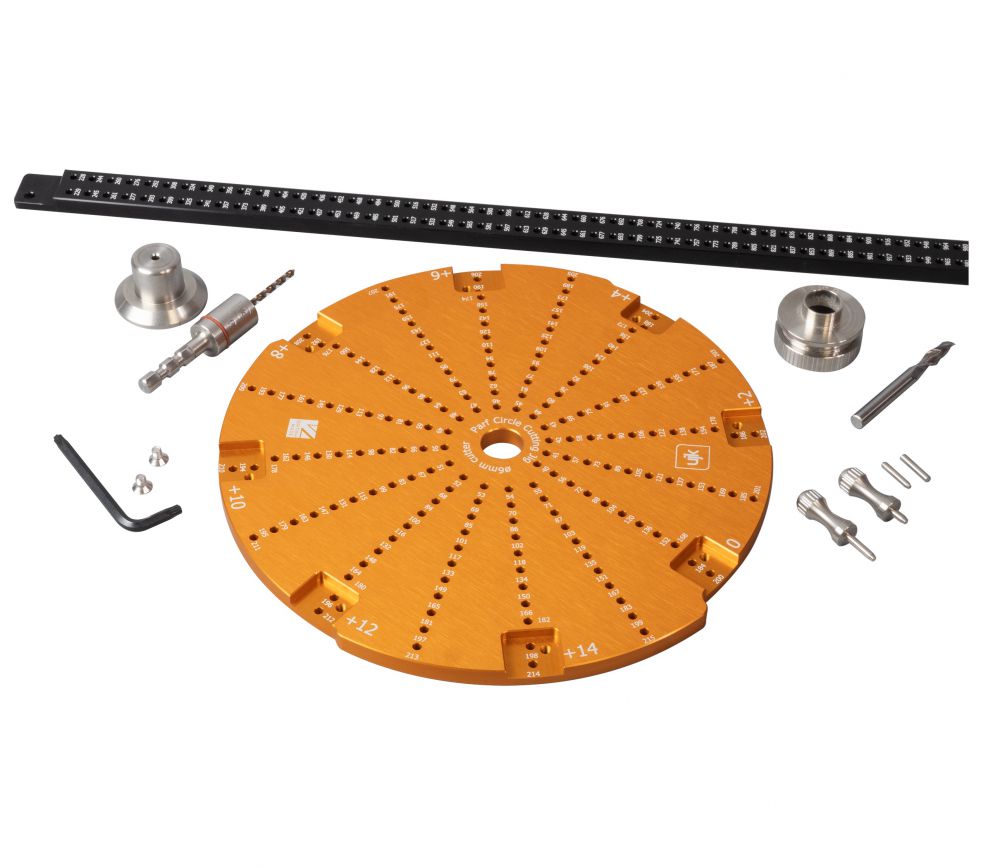

• UJK Circle Cutting Jig

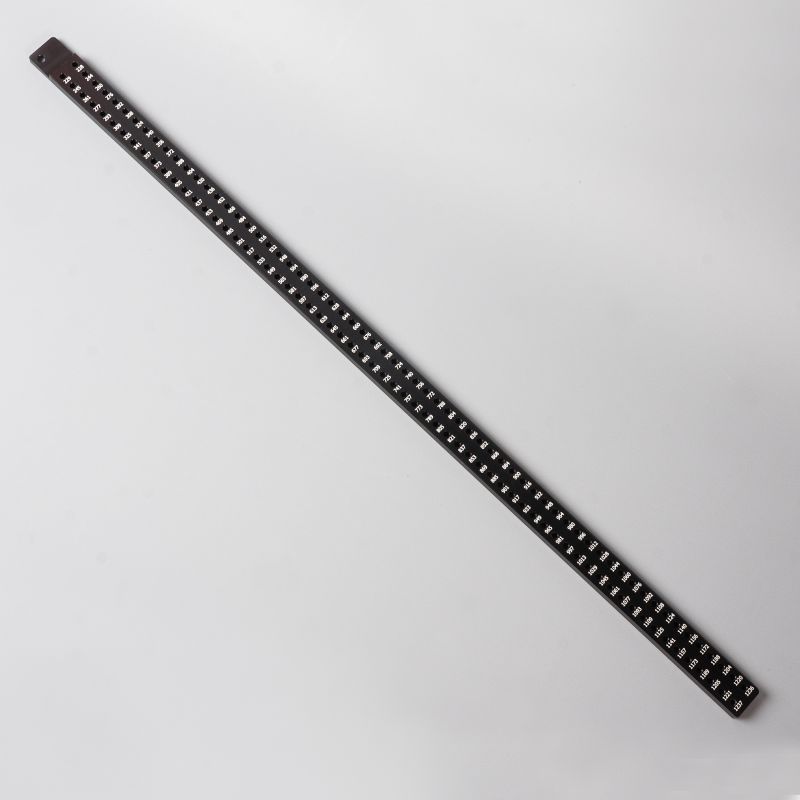

• extension bar
• 3mm drill bit and drill guide
• 16mm guide bush
• 6mm UJK Solid Carbide Upcut Spiral Cutter
• long and short pivot pins.
